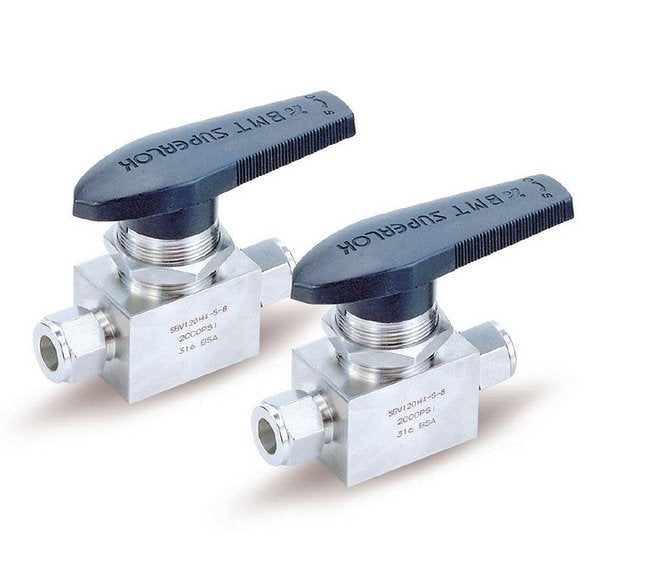

Superlok SBV120H Series 8mm One-Piece Ball Valve
Superlok SBV120H Series 8mm One-Piece Ball Valve
SKU:SBV-1308c4
Discover precise flow control with the Superlok SBV120H Series 8mm Ball Valve. Ideal for high-pressure applications, this valve ensures reliability and ease of operation.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Superlok SBV120H Series 8mm One-Piece Ball Valve
$99.99
Quantity: 1
Claim Your Seller Account
Superlok SBV120H Series 8mm One-Piece Ball Valve
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Superlok SBV120H Series 8mm One-Piece Ball Valve is engineered for precision performance in demanding applications. With a pressure rating of 2500 psig and a compact design featuring 316 Stainless Steel construction, this valve ensures reliable flow control and longevity. Tested to rigorous standards and featuring a variety of end connections, this valve offers seamless operation and exceptional durability.
Product Specifications
Features Features
Simple design with one piece bodyTight and smooth, low torque and easy operationOne-piece ball stemPanel mountableVariety of End ConnectionsStraight, Angle and 3-Way flow patternsEach and every valve is tested at the factory
Note Note

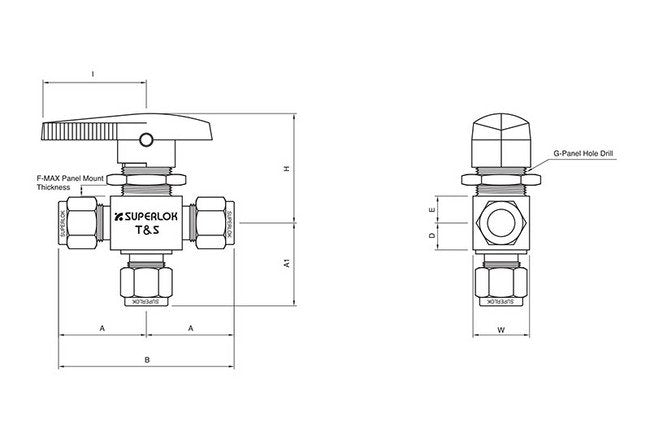

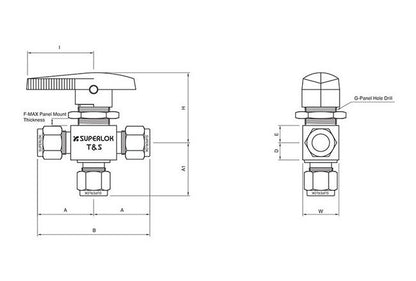

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Packing Adjustment Packing Adjustment
Valves are adjusted for factory testing at 1000 psig (69 bar).Packing must be readjusted for service at higher pressures.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
31.0 mm
Technical Specs Dimension A1
31.0 mm
Technical Specs Dimension B
62.0 mm
Technical Specs Dimension D
10.0 mm
Technical Specs Dimension E
10.0 mm
Technical Specs Dimension F
4.8 mm
Technical Specs Dimension G
19.8 mm
Technical Specs Dimension H
43.7 mm
Technical Specs Dimension I
38.5 mm
Technical Specs Dimension W
21 mm
Technical Specs Flow Coefficients Cv
0.8
Technical Specs Inlet End Connections
8 mm Superlok®
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
8 mm Superlok®
Technical Specs Pattern
3-Way Switching Valve
Technical Specs Pressure Rating
2500 psig | 172 bar
Technical Specs Temperature Rating With Polytetrafluoroethylene
50 to 150 ºF | 10 to 65 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig (69 bar) to maximum allowable leak rate of 0.1 SCCM.
