Superlok SBVF360 High Pressure Ball Valve
Superlok SBVF360 High Pressure Ball Valve
SKU:SBV-3678c1
Premium Superlok SBVF360 12mm High Pressure Ball Valve for extreme conditions, compact design, and superior reliability.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Superlok SBVF360 High Pressure Ball Valve
$249.99
Quantity: 1
Claim Your Seller Account
Superlok SBVF360 High Pressure Ball Valve
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

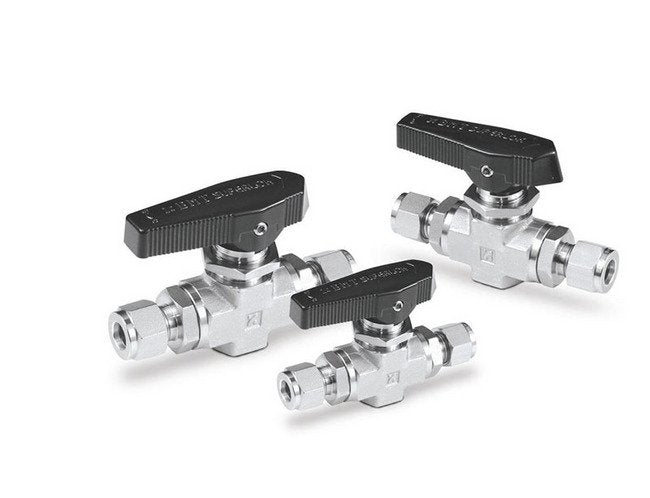

The Superlok SBVF360 Series 12mm High Pressure Ball Valve is a top-tier solution for demanding industrial applications. With a temperature rating spanning from -65 to 1200°F, this valve offers exceptional performance under extreme conditions. Its compact design, low operating torques, and panel-mountable features make it versatile for various setups. Tested rigorously to meet stringent standards, including a max leak rate of 0.1 cm³/min, this valve ensures reliability and durability in critical environments.
Product Specifications
Features Features
Compact DesignLow Operating TorquesPanel MountableFloating Ball DesignTwo Way and Three WayTypes Handle Direction Indicates Flow Direction
Note Note

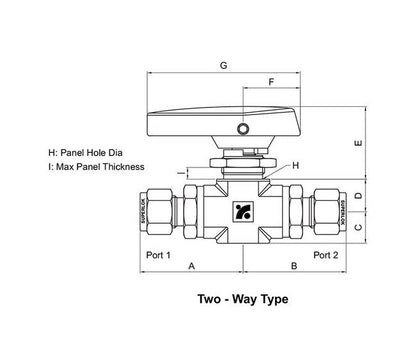

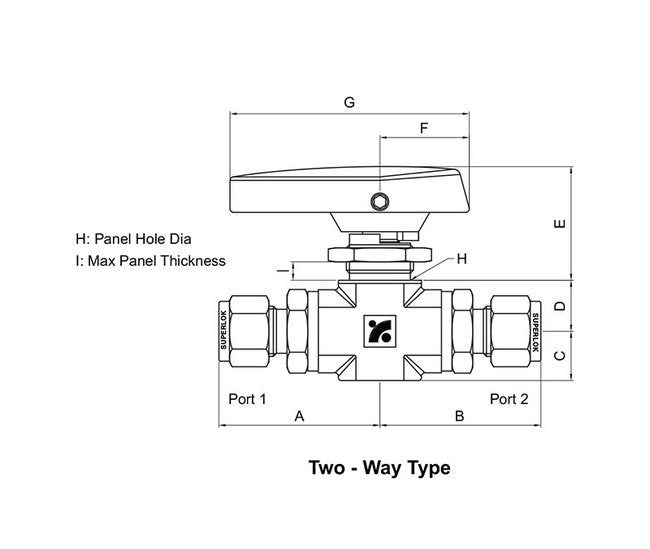

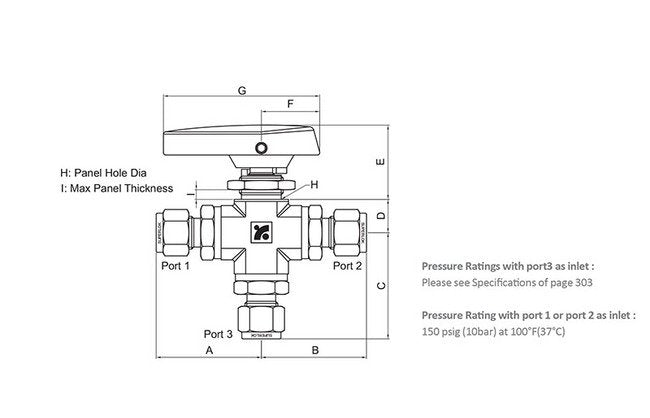

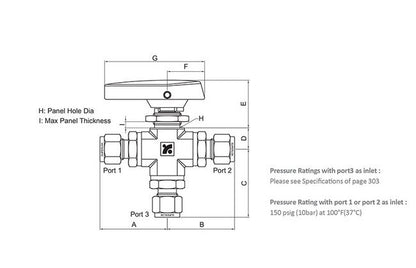

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
59.2 mm
Technical Specs Dimension B
59.2 mm
Technical Specs Dimension C
17.5 mm
Technical Specs Dimension D
19.3 mm
Technical Specs Dimension E
41.1 mm
Technical Specs Dimension F
27.7 mm
Technical Specs Dimension G
74.2 mm
Technical Specs Dimension H
22.9 mm
Technical Specs Dimension I
9.7 mm
Technical Specs End Connections
12 mm SUPERLOK®
Technical Specs Flow Coefficients Cv
5.57
Technical Specs Orifice Size
0.375 in | 9.5 mm
Technical Specs Temperature Rating For 316 Stainless Steel With
-65 to 1200 ºF | -65 to 1200 ºC
Technical Specs Temperature Rating For Nitrile Butadiene Rubber
-40 to 250 ºF | -40 to 120 ºC
Technical Specs Temperature Rating For Polychlorotrifluoroethyle
-65 to 1200 ºF | -53 to 93 ºC
Technical Specs Temperature Rating With Polyether Ether Ketone P
-65 to 450 ºF | -53 to 232 ºC
Technical Specs Temperature Rating With Polytetrafluoroethylene
-65 to 350 ºF | -53 to 177 ºC
Testing Testing
Each and every valve is tested with nitrogen at 1000 psig (69 bar)Valve have max allowable leak rate of 0.1 cm³/min.Shell testing is performed on demand.
