Superlok SBVF360 Series 1/2" High Pressure Ball Valve
Superlok SBVF360 Series 1/2" High Pressure Ball Valve
SKU:SBV-e098d4
Reliable, high-performance 1/2" High Pressure Ball Valve with precise flow control and compact design.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Superlok SBVF360 Series 1/2" High Pressure Ball Valve
$89.99
Quantity: 1
Claim Your Seller Account
Superlok SBVF360 Series 1/2" High Pressure Ball Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

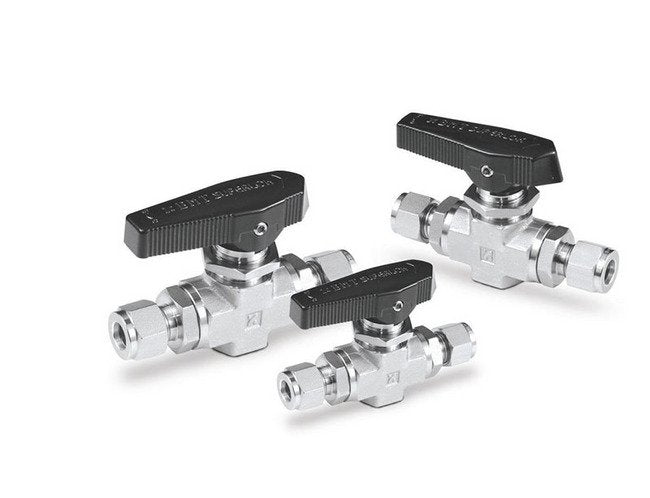

The Superlok SBVF360 Series 1/2 inch High Pressure Ball Valve is engineered for durability and high performance. With a compact design and low operating torques, this forged valve ensures reliable operation in the most demanding environments. Its floating ball design and panel mountable feature make it versatile for various applications. Tested to meet stringent standards, this valve offers precise control with a flow coefficient of 3.62. Perfect for industrial settings requiring temperature resistance and leak-free performance.
Product Specifications
Features Features
Compact DesignLow Operating TorquesPanel MountableFloating Ball DesignTwo Way and Three WayTypes Handle Direction Indicates Flow Direction
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

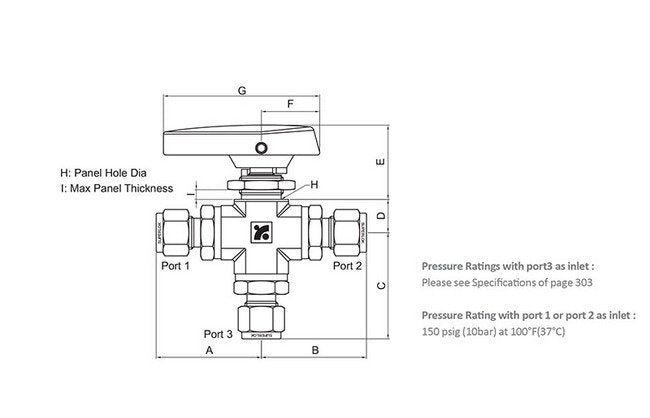

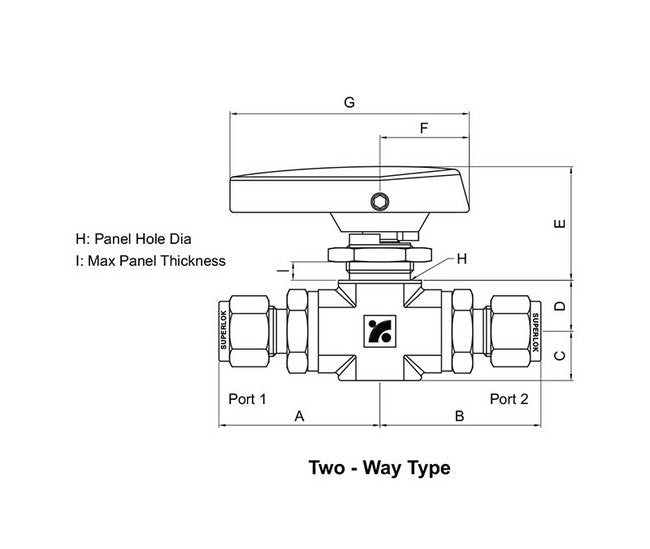

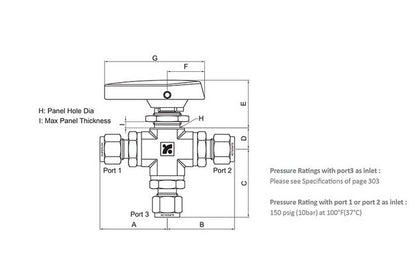

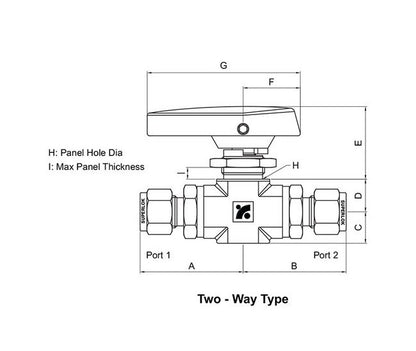

Technical Specs Dimension A
59.4 mm
Technical Specs Dimension B
59.4 mm
Technical Specs Dimension C
67.9 mm
Technical Specs Dimension D
19.3 mm
Technical Specs Dimension E
41.1 mm
Technical Specs Dimension F
27.7 mm
Technical Specs Dimension G
74.2 mm
Technical Specs Dimension H
22.9 mm
Technical Specs Dimension I
9.7 mm
Technical Specs End Connections
1/2 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
3.62
Technical Specs Orifice Size
0.406 in | 10.3 mm
Technical Specs Temperature Rating For 316 Stainless Steel With
-65 to 1200 ºF | -65 to 1200 ºC
Technical Specs Temperature Rating For Nitrile Butadiene Rubber
-40 to 250 ºF | -40 to 120 ºC
Technical Specs Temperature Rating For Polychlorotrifluoroethyle
-65 to 1200 ºF | -53 to 93 ºC
Technical Specs Temperature Rating With Polyether Ether Ketone P
-65 to 450 ºF | -53 to 232 ºC
Technical Specs Temperature Rating With Polytetrafluoroethylene
-65 to 350 ºF | -53 to 177 ºC
Testing Testing
Each and every valve is tested with nitrogen at 1000 psig (69 bar)Valve have max allowable leak rate of 0.1 cm³/min.Shell testing is performed on demand.
