Superlok SBVF360 High Pressure Ball Valve - Durability & Precision for Demanding Environments
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Superlok SBVF360 Series High Pressure Ball Valve - 3/8 in End Connection
$99.99
Quantity: 1
Claim Your Seller Account
Superlok SBVF360 Series High Pressure Ball Valve - 3/8 in End Connection
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

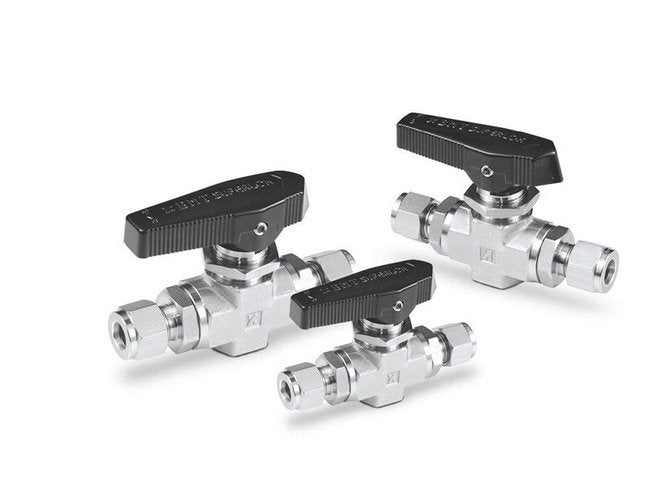

The Superlok SBVF360 Series 3/8 Inch High Pressure Ball Valve is designed for durability and precision. With temperature ratings ranging from -65 to 1200 ºF, this forged ball valve features a compact design, low operating torques, and panel mountable capabilities. Tested rigorously to meet industry standards, it offers a flow coefficient of 0.87 and end connections compatible with institutional requirements. Ideal for two-way and three-way applications, this valve ensures reliability and optimal performance in demanding environments.
Product Specifications
Features Features
Compact DesignLow Operating TorquesPanel MountableFloating Ball DesignTwo Way and Three WayTypes Handle Direction Indicates Flow Direction
Note Note

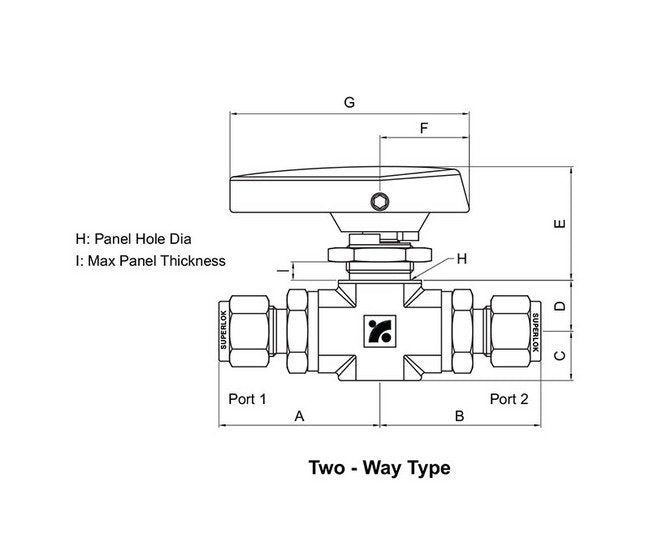

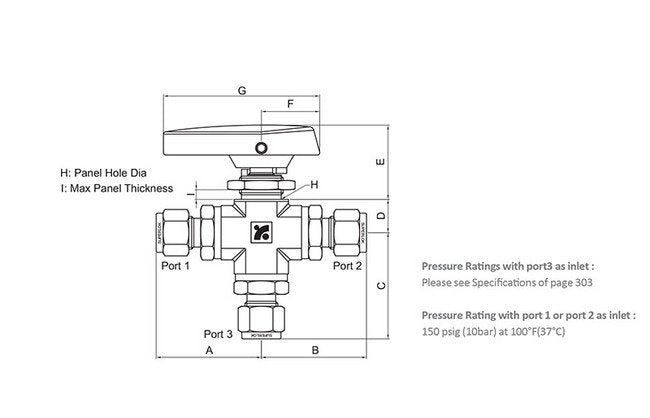

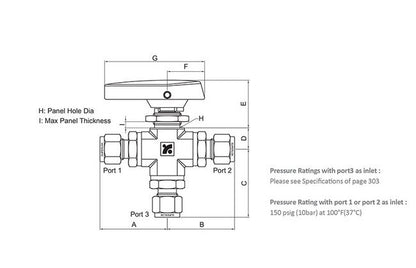

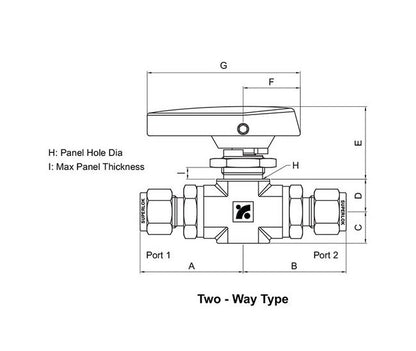

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
45.8 mm
Technical Specs Dimension B
45.8 mm
Technical Specs Dimension C
48.0 mm
Technical Specs Dimension D
14.5 mm
Technical Specs Dimension E
32.3 mm
Technical Specs Dimension F
25.4 mm
Technical Specs Dimension G
68.0 mm
Technical Specs Dimension H
19.6 mm
Technical Specs Dimension I
6.4 mm
Technical Specs End Connections
3/8 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
0.87
Technical Specs Orifice Size
0.25 in | 6.4 mm
Technical Specs Temperature Rating For 316 Stainless Steel With
-65 to 1200 ºF | -65 to 1200 ºC
Technical Specs Temperature Rating For Nitrile Butadiene Rubber
-40 to 250 ºF | -40 to 120 ºC
Technical Specs Temperature Rating For Polychlorotrifluoroethyle
-65 to 1200 ºF | -53 to 93 ºC
Technical Specs Temperature Rating With Polyether Ether Ketone P
-65 to 450 ºF | -53 to 232 ºC
Technical Specs Temperature Rating With Polytetrafluoroethylene
-65 to 350 ºF | -53 to 177 ºC
Testing Testing
Each and every valve is tested with nitrogen at 1000 psig (69 bar)Valve have max allowable leak rate of 0.1 cm³/min.Shell testing is performed on demand.
