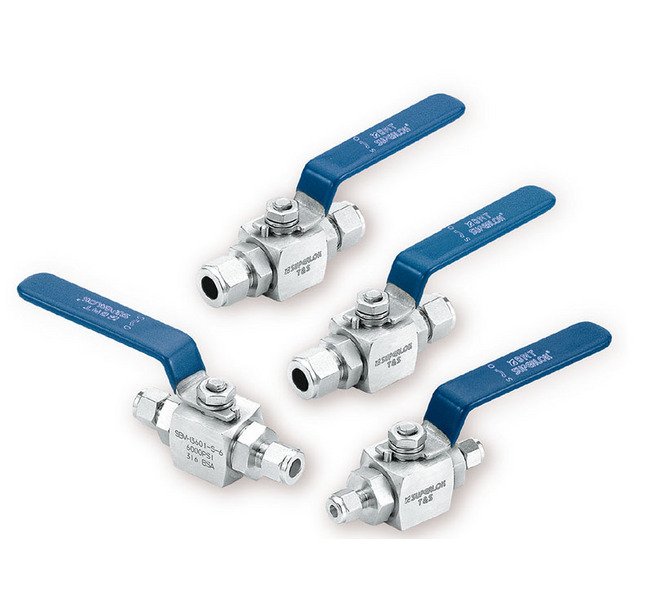

SUPERLOK SBVH360-3S High Pressure Ball Valve
SUPERLOK SBVH360-3S High Pressure Ball Valve
SKU:SBV-2ed77f
High pressure ball valve with 12.7mm orifice size and 5/8" end connections for reliability and safety in diverse applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SUPERLOK SBVH360-3S High Pressure Ball Valve
$129.99
Quantity: 1
Claim Your Seller Account
SUPERLOK SBVH360-3S High Pressure Ball Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUPERLOK SBVH360-3S Series 12.7mm Orifice Size and 5/8" End Connections Ball Valve is engineered for high pressure applications, ensuring reliability and efficiency. Tested to stringent standards, this valve features a compact design, high flow rate, and anti-blowout stem for ultimate performance. With fire safety design and various end connection options, it offers versatility and peace of mind. Suitable for institutional and consumer use.
Product Specifications
Features Features
Compact designHigh flow rate with maximum orificeVariety of End ConnectionsAnti blow-out stem designEach and every valve is tested at the factoryFire safety design available
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

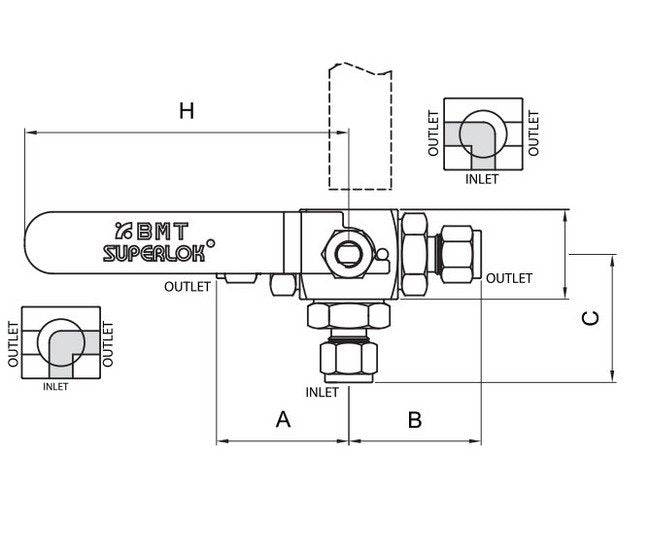

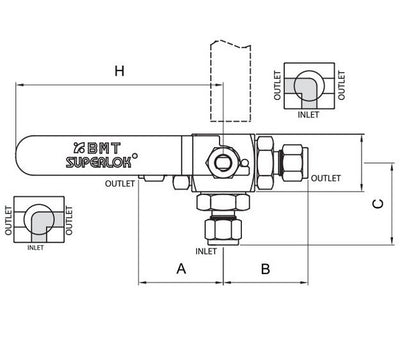

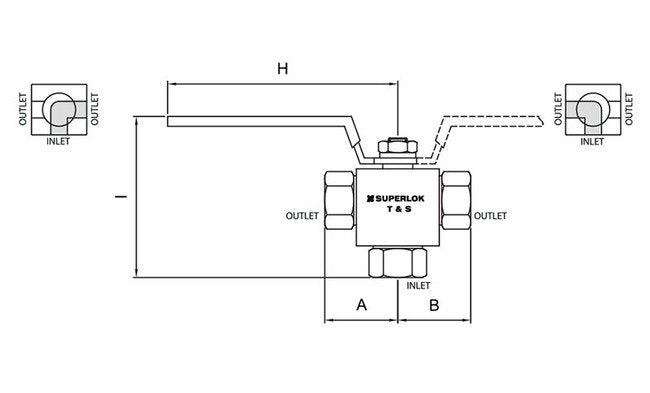

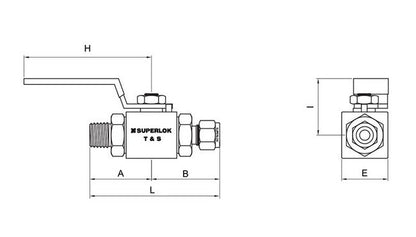

Technical Specs Dimension A
54.0 mm
Technical Specs Dimension B
54.0 mm
Technical Specs Dimension C
65.3 mm
Technical Specs Dimension H
165 mm
Technical Specs Dimension I
108 mm
Technical Specs End Connections
3/4 in. SUPERLOK®
Technical Specs Orifice Size
12.7 mm
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
