Superlok SBVT210 Series 12.5mm Orifice 3/4
Superlok SBVT210 Series 12.5mm Orifice 3/4
SKU:SBV-71dd9f
SBVT210 Series 12.5 Millimeter (mm) Orifice Size and 3/4 Inch (in) SUPERLOK® End Connections Two-Piece Type Ball Valve - Quick overview.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Superlok SBVT210 Series 12.5mm Orifice 3/4
$49.99
Quantity: 1
Claim Your Seller Account
Superlok SBVT210 Series 12.5mm Orifice 3/4
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Product Specifications
Features Features
Compact designTight and smooth, low torque and easy operationButterfly and lever handle availableVariety of End ConnectionsEach and every valve is tested at the factory
Note Note

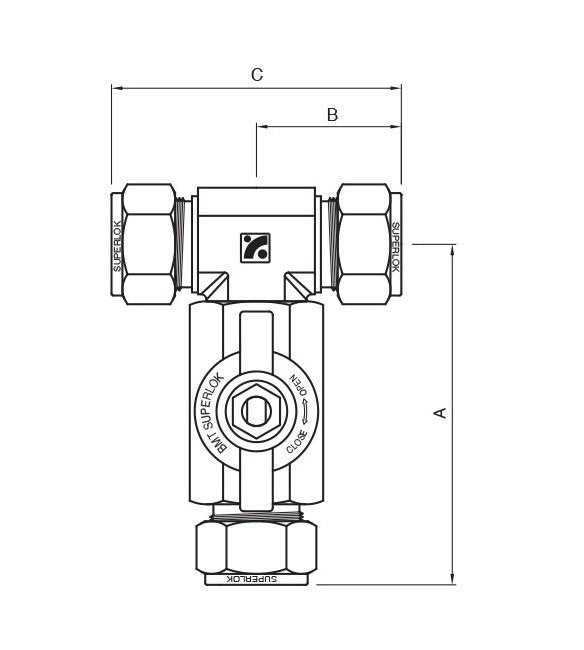

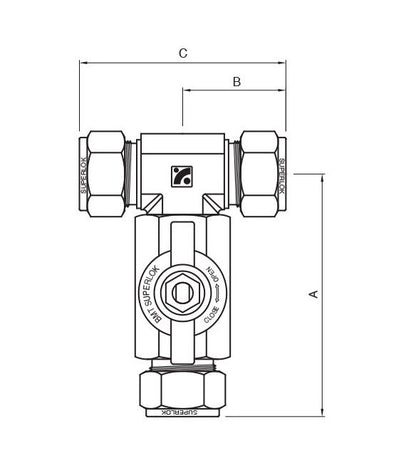

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
93.8 mm
Technical Specs Dimension B
39.9 mm
Technical Specs Dimension C
79.8 mm
Technical Specs End Connections
3/4 in. SUPERLOK®
Technical Specs Handle
Bar Handle | Butterfly Handle (Standard)
Technical Specs Orifice Size
12.5 mm
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
1000 psig | 69 bar
