SUPERLOK SBVT210 Series 7.5mm Orifice Ball Valve
SUPERLOK SBVT210 Series 7.5mm Orifice Ball Valve
SKU:SBV-5b5c70
High-quality SUPERLOK SBVT210 Series 7.5mm Orifice Ball Valve for precise flow control in industrial applications.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
SUPERLOK SBVT210 Series 7.5mm Orifice Ball Valve
$99.99
Quantity: 1
Claim Your Seller Account
SUPERLOK SBVT210 Series 7.5mm Orifice Ball Valve
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUPERLOK SBVT210 Series 7.5mm Orifice Ball Valve is a reliable solution for precise flow control. Built with 316 Stainless Steel or Brass body material, it offers a pressure rating of 1000 psig | 69 bar at 70°F. With a compact design, low torque operation, and butterfly handle option, this valve ensures easy and efficient operation. Each valve undergoes rigorous factory testing, guaranteeing quality performance. Ideal for industrial applications requiring durability and tight sealing, the SBVT210 is a versatile choice.
Product Specifications
Features Features
Compact designTight and smooth, low torque and easy operationButterfly and lever handle availableVariety of End ConnectionsEach and every valve is tested at the factory
Note Note

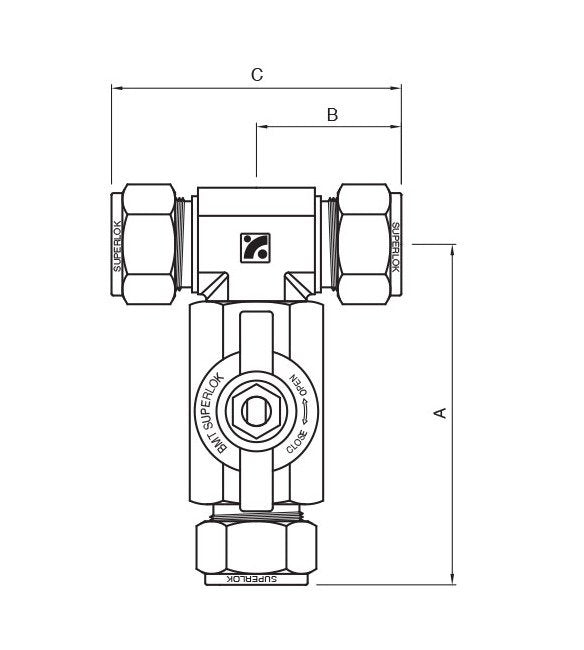

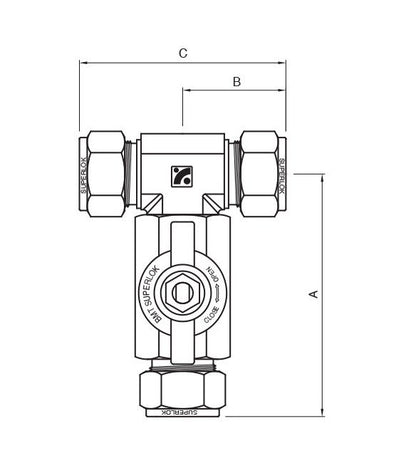

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
77.5 mm
Technical Specs Dimension B
36.1 mm
Technical Specs Dimension C
72.2 mm
Technical Specs End Connections
3/8 in. SUPERLOK®
Technical Specs Handle
Bar Handle | Butterfly Handle (Standard)
Technical Specs Orifice Size
7.5 mm
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
1000 psig | 69 bar
