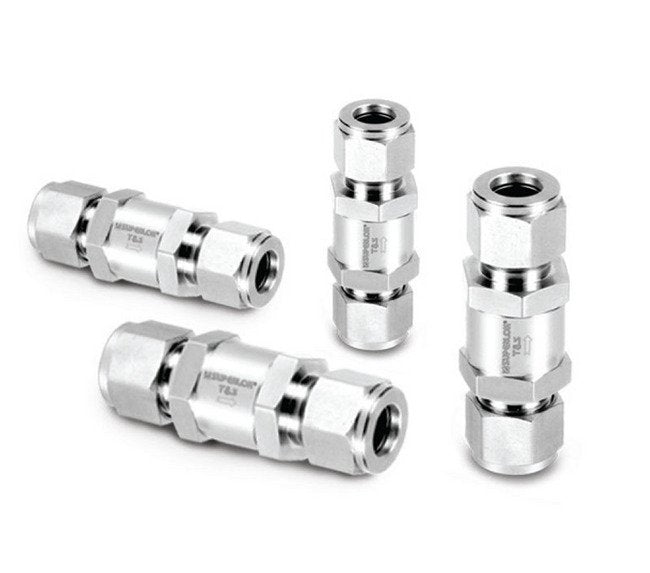

The Superlok SHCV2 Series 7.8mm High Pressure Check Valve with 3/8in SUPERLOK® End Connections is a robust and reliable solution for high-pressure applications, featuring a pressure rating of 6000psig. Made from premium materials like 316 Stainless Steel, it ensures durability and performance. With a fixed cracking pressure range and tested resealing performance, this valve meets stringent industry standards for safety and reliability, making it ideal for both consumer and institutional buyers.
Product Specifications
Features Features
Pressure rating up to 6,000 psig(413 bar) at 100 ºF (37 ºC)Cracking pressure fixed from 1/3 to 25 psig (0.02 to 1.7 bar)Variety of end connections316 stainless steel body material as standard.Each and every valve is tested for cracking pressure and reseal performance at the factory.
Note Note

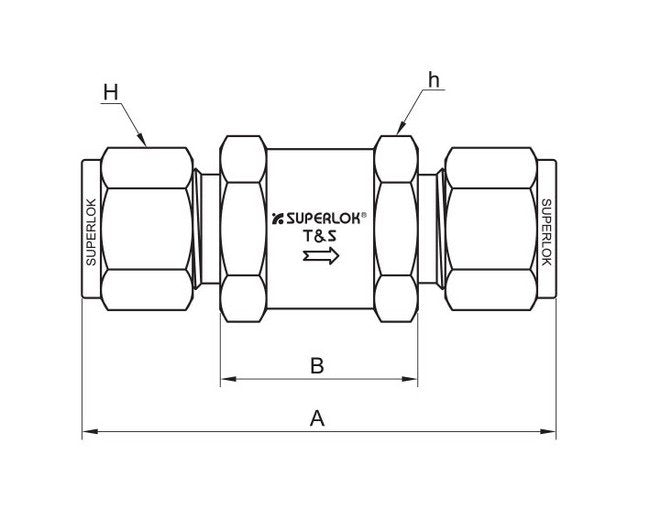

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
69.9 mm
Technical Specs Dimension B
31.2 mm
Technical Specs Dimension H
17.5 mm | 11/16 in
Technical Specs End Connections
3/8 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
1.80
Technical Specs Orifice Size
7.8 mm
Technical Specs Pressure Rating
6000 psig | 413 bar
Technical Specs Seal Material
Ethylene Propylene Diene Monomer (EPDM) | Fluorocarbon (FKM) | Nitrile Butadiene Rubber (NBR)
Technical Specs Temperature Rating With Standard Fluorocarbon Fk
375 ºF | 190 ºC
