Superlok SHCV3 15mm Orifice High Pressure Check Valve
Superlok SHCV3 15mm Orifice High Pressure Check Valve
SKU:SHC-a8b662
Superlok SHCV3 15mm High Pressure Check Valve for precise flow control & durability. 4700 psig, 4.70 Cv, tested for reliability. Ideal for industrial use.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Superlok SHCV3 15mm Orifice High Pressure Check Valve
$129.99
Quantity: 1
Claim Your Seller Account
Superlok SHCV3 15mm Orifice High Pressure Check Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

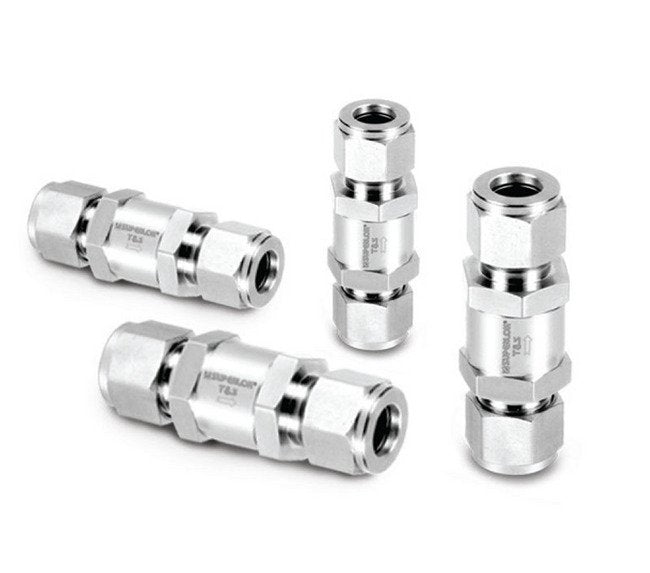

The Superlok SHCV3 Series 15mm Orifice High Pressure Check Valve is designed for precise flow control and reliability in demanding industrial environments. With a 4.70 Cv flow coefficient and 4700 psig pressure rating, this valve ensures optimal performance under high pressure conditions. Constructed with 316 Stainless Steel and available with various end connections, this valve guarantees durability, while the Ethylene Propylene Diene Monomer (EPDM), Fluorocarbon (FKM), and Nitrile Butadiene Rubber (NBR) seal materials offer superior resistance to extreme temperatures and chemicals. Tested for cracking pressure and reseal performance, the Superlok SHCV3 valve meets the strictest quality standards, making it ideal for institutional and government procurement needs.
Product Specifications
Features Features
Pressure rating up to 6,000 psig(413 bar) at 100 ºF (37 ºC)Cracking pressure fixed from 1/3 to 25 psig (0.02 to 1.7 bar)Variety of end connections316 stainless steel body material as standard.Each and every valve is tested for cracking pressure and reseal performance at the factory.
Note Note

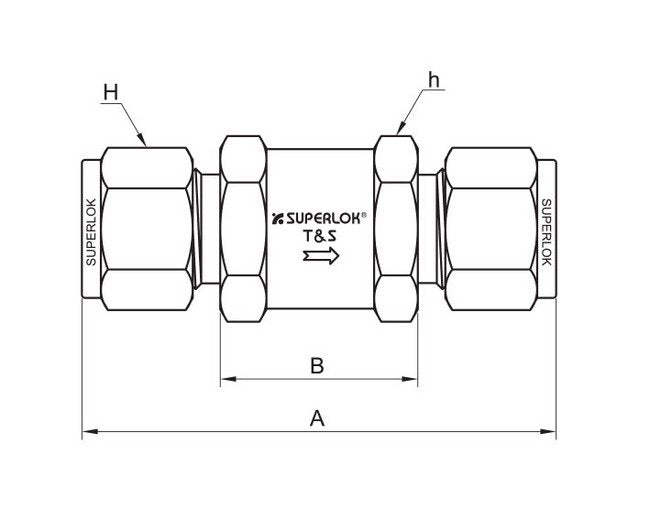

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
98.6 mm
Technical Specs Dimension B
45.5 mm
Technical Specs Dimension H
38.1 mm | 1-1/2 in
Technical Specs End Connections
1 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
4.70
Technical Specs Orifice Size
15.0 mm
Technical Specs Pressure Rating
4700 psig | 323 bar
Technical Specs Seal Material
Ethylene Propylene Diene Monomer (EPDM) | Fluorocarbon (FKM) | Nitrile Butadiene Rubber (NBR)
Technical Specs Temperature Rating With Standard Fluorocarbon Fk
375 ºF | 190 ºC
