The Superlok SPUV Series 1/4" Elbow Type Purge Valve is a reliable solution designed for manual bleed, vent, or drainage applications in industrial settings. Constructed with premium 316 Stainless Steel or Brass, this compact valve ensures leaktight closure at rated pressures, enhancing operational safety. With features like a crimped cap for prevention of accidental disassembly and various end connections including SUPERLOK® tube fittings, NPT, and ISO threads, this valve offers convenience and versatility. The vent hole facilitates the removal of excess liquid or gas from system lines. Install with caution to direct system fluid away from personnel for optimal safety.
Product Specifications
Application Application
SUPERLOK purge valves are manual bleed, vent, or drain valves. One-quarter turn with a wrench from finger-tight obtains leaktight closure on first makeup. Snugging with a wrench ensures closure to the rated pressure with subsequent makeups.
Caution Caution
When installing a SUPERLOK purge valve, position the vent hole to direct system fluid away from operating personnel. The vent hole rotates with the cap. changing the direction of discharge as the cap is turned. Always open purge valves slowly. These valves contain no packing, so some fluid seepage will occur when the valves are opened. operating personnel must protect themselves from exposure to system fluids.
Features Features
Compact for convenient installation.Vent hole is bled excessive liquid or gas from system lines.Cap is crimped to valve body to prevent accidental disassembly.Variety of end connections : SUPERLOK® tube fittings, NPT and ISO threads.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Data Pressure Rating At 100 Degree Fahrenheit F 38 Deg
4000 psig | 275 bar
Technical Data Temperature Rating
65 to 600 ºF | -54 to 315 ºC
Technical Specs Body Material
316 Stainless Steel | Brass

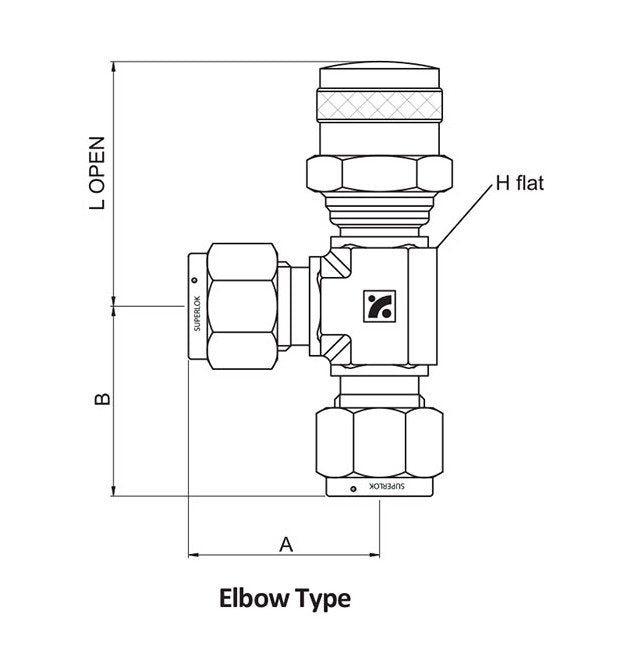

Technical Specs Dimension A
1.13 in | 28.8 mm
Technical Specs Dimension B
1.13 in | 28.8 mm
Technical Specs Dimension H
0.63 in | 15.9 mm
Technical Specs Dimension L
1.49 in | 38.0 mm
Technical Specs Inlet End Connections
1/4 in. SUPERLOK®
Technical Specs Pattern Designator
Elbow Type
Technical Specs Tube Outside Diameter
1/4 in | 6 mm
