SUPERLOK SPUV Series 1/8 in Straight Purge Valve
SUPERLOK SPUV Series 1/8 in Straight Purge Valve
SKU:SPU-c3b12f
Durable SUPERLOK SPUV Series 1/8 in Straight Purge Valve for precise manual control in various applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SUPERLOK SPUV Series 1/8 in Straight Purge Valve
$89.99
Quantity: 1
Claim Your Seller Account
SUPERLOK SPUV Series 1/8 in Straight Purge Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUPERLOK SPUV Series 1/8 Inch Straight Type Purge Valve is a durable and versatile solution for manual bleed, vent, or drain operations. Made of high-quality 316 Stainless Steel and Brass, this purge valve offers a temperature rating from 65 to 600°F and a pressure rating of 4000 psig. Its compact design allows for easy installation, while the vent hole ensures efficient removal of excessive liquid or gas. With a variety of end connection options including SUPERLOK® tube fittings, NPT, and ISO threads, this purge valve offers flexibility and reliability in diverse applications.
Product Specifications
Application Application
SUPERLOK purge valves are manual bleed, vent, or drain valves. One-quarter turn with a wrench from finger-tight obtains leaktight closure on first makeup. Snugging with a wrench ensures closure to the rated pressure with subsequent makeups.
Caution Caution
When installing a SUPERLOK purge valve, position the vent hole to direct system fluid away from operating personnel. The vent hole rotates with the cap. changing the direction of discharge as the cap is turned. Always open purge valves slowly. These valves contain no packing, so some fluid seepage will occur when the valves are opened. operating personnel must protect themselves from exposure to system fluids.
Features Features
Compact for convenient installation.Vent hole is bled excessive liquid or gas from system lines.Cap is crimped to valve body to prevent accidental disassembly.Variety of end connections : SUPERLOK® tube fittings, NPT and ISO threads.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Data Pressure Rating At 100 Degree Fahrenheit F 38 Deg
4000 psig | 275 bar
Technical Data Temperature Rating
65 to 600 ºF | -54 to 315 ºC
Technical Specs Body Material
316 Stainless Steel | Brass

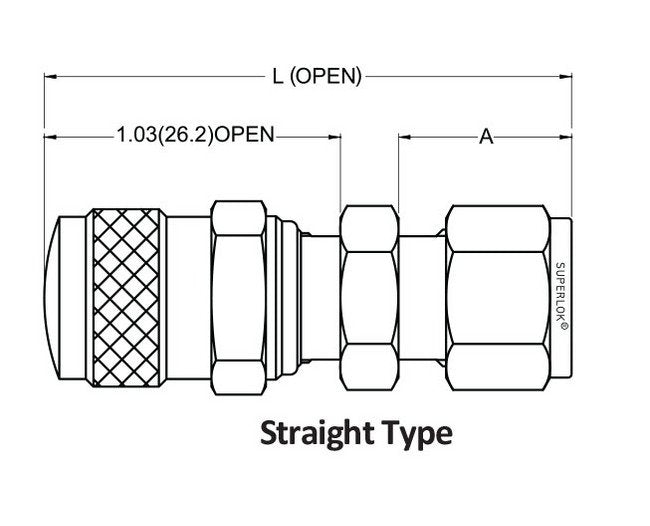

Technical Specs Dimension H
0.59 in | 15.0 mm
Technical Specs Dimension L
1.84 in | 46.7 mm
Technical Specs Inlet End Connections
1/8 in. Superlok®
Technical Specs Pattern Designator
Straight Type
