SUPERLOK SPUV Series 3/8" FNPT Purge Valve
SUPERLOK SPUV Series 3/8" FNPT Purge Valve
SKU:SPU-ec7c59
Efficient and leak-tight 3/8" FNPT Purge Valve for reliable manual bleed, vent, or drain operations. Compliant with strict procurement standards.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
SUPERLOK SPUV Series 3/8" FNPT Purge Valve
$59.99
Quantity: 1
Claim Your Seller Account
SUPERLOK SPUV Series 3/8" FNPT Purge Valve
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUPERLOK SPUV Series 3/8" FNPT Purge Valve is a top-tier solution for manual bleed, vent, or drain applications. Constructed with 316 Stainless Steel and Brass, this purge valve offers leaktight closure with a quarter turn, ensuring safety and efficiency. Its compact design and variety of end connections make it convenient for installation in diverse systems. With a pressure rating of 4000 psig and a temperature range of 65 to 600°F, this purge valve excels in performance and reliability, meeting the stringent requirements of institutional and government procurement standards.
Product Specifications
Application Application
SUPERLOK purge valves are manual bleed, vent, or drain valves. One-quarter turn with a wrench from finger-tight obtains leaktight closure on first makeup. Snugging with a wrench ensures closure to the rated pressure with subsequent makeups.
Caution Caution
When installing a SUPERLOK purge valve, position the vent hole to direct system fluid away from operating personnel. The vent hole rotates with the cap. changing the direction of discharge as the cap is turned. Always open purge valves slowly. These valves contain no packing, so some fluid seepage will occur when the valves are opened. operating personnel must protect themselves from exposure to system fluids.
Features Features
Compact for convenient installation.Vent hole is bled excessive liquid or gas from system lines.Cap is crimped to valve body to prevent accidental disassembly.Variety of end connections : SUPERLOK® tube fittings, NPT and ISO threads.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Data Pressure Rating At 100 Degree Fahrenheit F 38 Deg
4000 psig | 275 bar
Technical Data Temperature Rating
65 to 600 ºF | -54 to 315 ºC
Technical Specs Body Material
316 Stainless Steel | Brass

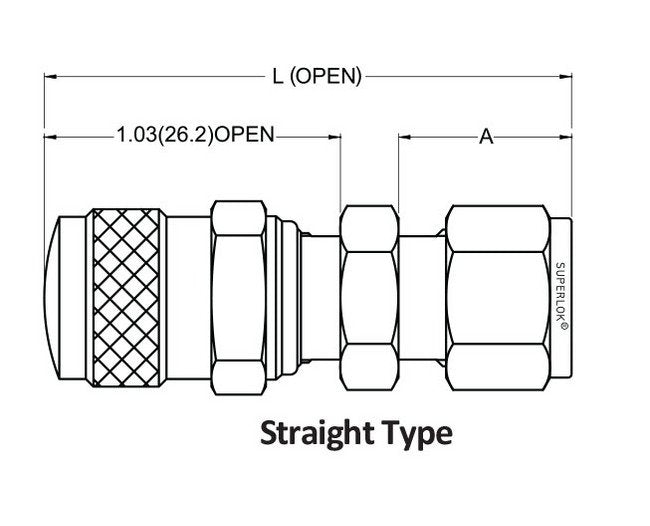

Technical Specs Dimension H
0.78 in | 19.8 mm
Technical Specs Dimension L
1.81 in | 46.0 mm
Technical Specs Inlet End Connections
3/8 in. Female National Pipe Thread (FNPT)
Technical Specs Pattern Designator
Straight Type
Technical Specs Tube Outside Diameter
3/8 in | 10 mm
