SUPERLOK SQC Series 1/2" Instrumentation Quick Connector Fitting
SUPERLOK SQC Series 1/2" Instrumentation Quick Connector Fitting
SKU:SQC-e50578
Efficiently connect and disconnect lines with the SUPERLOK SQC Series 1/2" Quick Connector - 750 psig pressure rating, premium materials, automatic valves.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SUPERLOK SQC Series 1/2" Instrumentation Quick Connector Fitting
$29.99
Quantity: 1
Claim Your Seller Account
SUPERLOK SQC Series 1/2" Instrumentation Quick Connector Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUPERLOK SQC Series 1/2" Instrumentation Quick Connector Fitting is designed for precision and ease of use in industrial applications. Constructed from high-grade 316 Stainless Steel or Brass, it offers a coupled pressure rating of 750 psig at 70°F to ensure reliable performance. With a simple push-pull mechanism, valved or unvalved options, and automatic shut-off valves, this quick connector minimizes liquid or gas leakage. Enjoy efficient operations and seamless connections with this versatile and durable fitting.
Product Specifications
Features Features
Simple push-pull action to connect and disconnect lines-no tools required.Plug and body are available valved or unvalved. Valves automatically open when connected and shut off when disconnected to minimize the loss of liquids or gases.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Coupled Pressure Rating At 400 Degree Fahrenheit
250 psig | 17.2 bar
Technical Specs Coupled Pressure Rating At 70 Degree Fahrenheit
750 psig | 51.6 bar

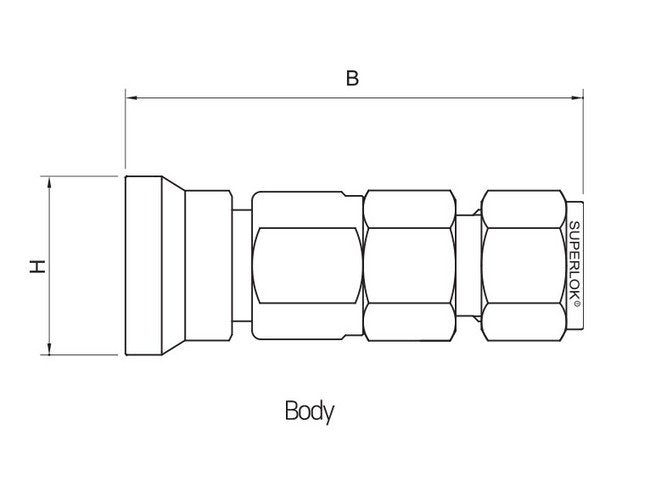

Technical Specs Dimension B
78.5 mm
Technical Specs Dimension H
30.7 mm
Technical Specs End Connections
1/2 in. SUPERLOK®
Technical Specs Maximum Flow Rate Water At 70 Degree Fahrenheit
37 L/min | 10 gpm
Technical Specs Type
Body
