Superlok SQC Series 10mm Quick Connector Fitting
Superlok SQC Series 10mm Quick Connector Fitting
SKU:SQC-9de1ca
High-performance 10mm Quick Connector Fitting for seamless instrument connections without leakage. Crafted from durable materials with double shutoff design.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Superlok SQC Series 10mm Quick Connector Fitting
$45.99
Quantity: 1
Claim Your Seller Account
Superlok SQC Series 10mm Quick Connector Fitting
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Superlok SQC Series 10mm Quick Connector Fitting is designed for seamless instrument connection applications. Crafted from high-quality 316 Stainless Steel or Brass, this fitting ensures durability and reliability. With a double shutoff plug type, it offers a coupled pressure rating of up to 1500 psig at 70°F, making it ideal for critical systems. The simple push-pull mechanism allows for easy line connections without the need for tools, minimizing fluid or gas loss. Trust in the Superlok SQC Series for efficient, leak-free operations.
Product Specifications
Features Features
Simple push-pull action to connect and disconnect lines-no tools required.Plug and body are available valved or unvalved. Valves automatically open when connected and shut off when disconnected to minimize the loss of liquids or gases.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Coupled Pressure Rating At 400 Degree Fahrenheit
250 psig | 17.2 bar
Technical Specs Coupled Pressure Rating At 70 Degree Fahrenheit
1500 psig | 103 bar

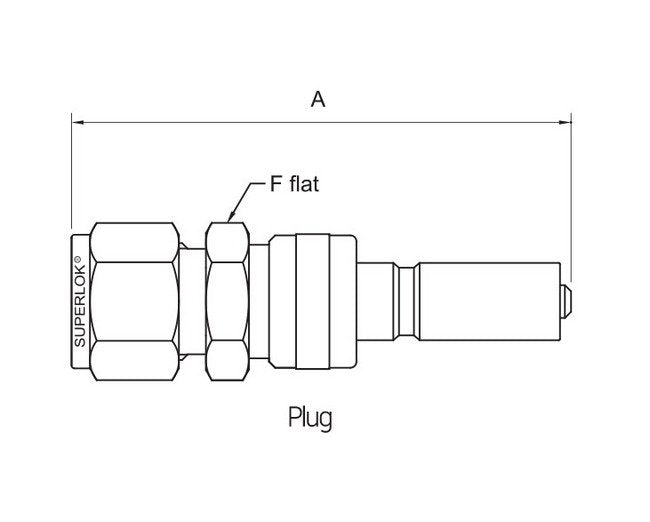

Technical Specs Dimension F
19.1 mm
Technical Specs End Connections
10 mm SUPERLOK®
Technical Specs Flow Coefficients Cv
1.5
Technical Specs Insertion Depth
1.30 in | 33.0 mm
Technical Specs Maximum Flow Rate Water At 70 Degree Fahrenheit
22 L/min | 6 gpm
Technical Specs Note For Spillage
Spillage is the amount of system fluid that escapes when a quick-connect is uncoupled (double shut off only)
Technical Specs Plug Type
Double Shutoff Plug
Technical Specs Spillage
1.0 cm³
Technical Specs Type
Plug
