SUPERLOK SRI Series 14.8mm Reducing Adapter Fitting
SUPERLOK SRI Series 14.8mm Reducing Adapter Fitting
SKU:SRI-0f0ab5
Enhance tube-to-port connections with the high-performance SUPERLOK SRI Series 14.8mm Reducing Adapter Fitting. Improve safety, productivity, and cost-efficiency in high-pressure environments.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
SUPERLOK SRI Series 14.8mm Reducing Adapter Fitting
$45.99
Quantity: 1
Claim Your Seller Account
SUPERLOK SRI Series 14.8mm Reducing Adapter Fitting
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

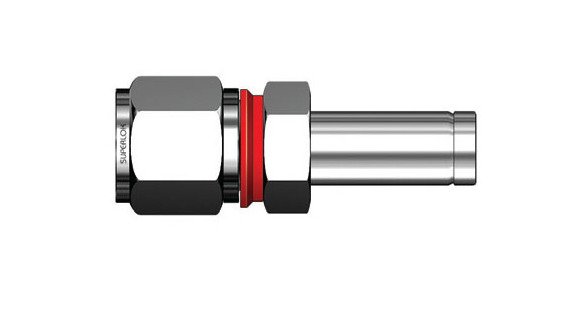

The SUPERLOK SRI Series 14.8mm Reducing Adapter Fitting is designed to seamlessly connect fractional tubes to SUPERLOK ports. Crafted from high-quality materials like Alloy 625 and Stainless Steel, this fitting ensures durability and corrosion resistance. Featuring the innovative i-Fitting components with a built-in gap gauge, it enhances installation safety, productivity, and cost-efficiency in high-pressure environments. This industry-changing design by BMT guarantees perfect compression, eliminating over- and under-tightening issues. Ideal for valve connections, this fitting exceeds industry standards for reliability and performance.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

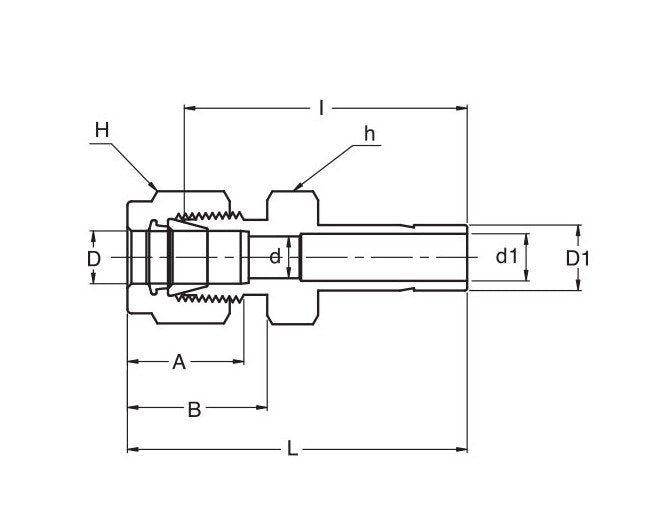

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
16.76 mm
Technical Specs Dimension B
19.30 mm
Technical Specs Dimension I
42.92 mm
Technical Specs Dimension L
50.29 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.11 mm
Technical Specs Minimum Dimension D1
14.8 mm
Technical Specs Standard Size
1 to 4 in
Technical Specs Tube Outside Diameter D
3/8 in
Technical Specs Tube Outside Diameter D1
3/4 in
Technical Specs Width Across Flat H
11/16 in
