SUPERLOK SRI Series 4.4mm to 1/2'' Reducing Adapter Fitting
SUPERLOK SRI Series 4.4mm to 1/2'' Reducing Adapter Fitting
SKU:SRI-a56282
Efficiently connect fractional tubes with precision using SUPERLOK SRI Series Reducing Adapter Fitting for secure and reliable installations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SUPERLOK SRI Series 4.4mm to 1/2'' Reducing Adapter Fitting
$29.99
Quantity: 1
Claim Your Seller Account
SUPERLOK SRI Series 4.4mm to 1/2'' Reducing Adapter Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

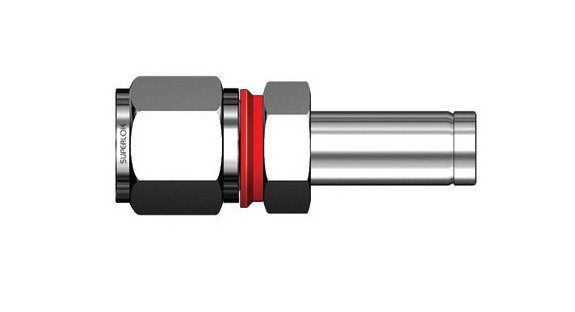

The SUPERLOK SRI Series Reducing Adapter Fitting is engineered to connect fractional tubes to fractional SUPERLOK® ports efficiently and securely. This reducing adapter features a minimum dimension of 4.4mm, dimension A of 22.86mm, and dimension I of 34.79mm, ensuring precise and reliable connections. Crafted from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, it guarantees durability and resistance to corrosive environments. The innovative i-Fitting® design enhances installer safety, improves productivity, and offers a patented solution for perfect compression, making it ideal for high-pressure industrial applications.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

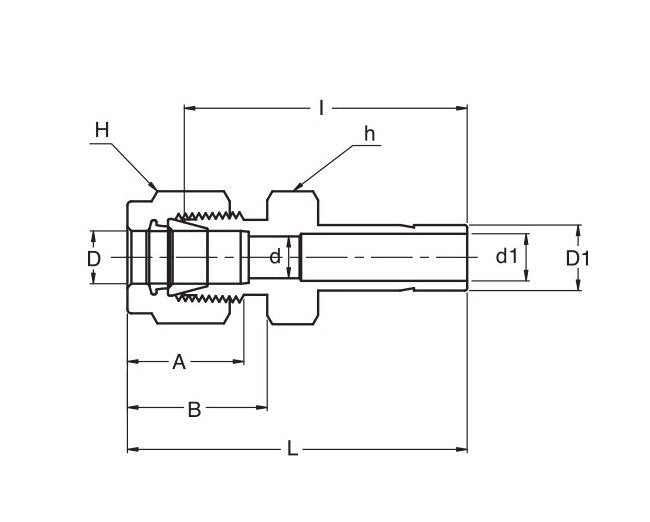

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
22.86 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension I
34.79 mm
Technical Specs Dimension L
44.95 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
10.41 mm
Technical Specs Minimum Dimension D1
4.4 mm
Technical Specs Standard Size
1 to 4 in
Technical Specs Tube Outside Diameter D
1/2 in
Technical Specs Tube Outside Diameter D1
1/4 in
Technical Specs Width Across Flat H
7/8 in
