Superlok SRVL Low Pressure Relief Valve
Superlok SRVL Low Pressure Relief Valve
SKU:REL-134291
Reliable SUPERLOK® SRVL Series 3/8 Inch Low Pressure Relief Valve with precise control and compact design for industrial applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Superlok SRVL Low Pressure Relief Valve
$49.99
Quantity: 1
Claim Your Seller Account
Superlok SRVL Low Pressure Relief Valve
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUPERLOK® SRVL Series 3/8 Inch Low Pressure Relief Valve is a versatile solution for maintaining optimal pressure levels in various systems. With a maximum working pressure of 300 psig and a cracking pressure range of 10~250 psig, this valve offers precise control and reliability. Its compact design, adjustable cracking pressure, and secure lock wire feature make it a preferred choice for industrial applications requiring consistent performance. Every valve undergoes thorough testing at the factory to ensure quality and repeatability. Dimensions and drawings provided are for reference, and optional sizes and end connections are available upon request.
Product Specifications
Features Features
Compact designCracking pressure adjustable externallyLock wire feature secures a given pressure settingEach and every valve is tested at the factory
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Set Pressure Set Pressure
Set pressure is the upstream pressure at which the first indication of flow occurs.Set pressure of each valve after initial relief is repeatable within ±5% at room temperature
Technical Specs Cracking Pressure Range
10~250 psig | 0.69~17.2 bar

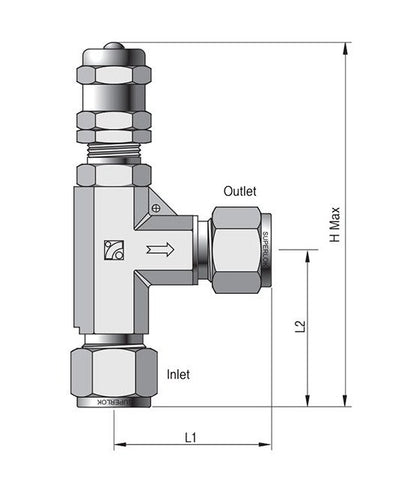

Technical Specs Dimension H
99.5 mm
Technical Specs Dimension L1
34.5 mm
Technical Specs Dimension L2
32.5 mm
Technical Specs Inlet End Connections
3/8 in. Male National Pipe Thread (MNPT)
Technical Specs Maximum Working Pressure
300 psig | 206 bar
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
3/8 in. Female National Pipe Thread (FNPT)
Technical Specs Series
SRVL
