Superlok SRVL Series 12mm Low Pressure Relief Valve
Superlok SRVL Series 12mm Low Pressure Relief Valve
SKU:REL-6e4b72
Precise pressure control with Superlok SRVL Series 12mm Low Pressure Relief Valve. Max pressure: 300 psig. Compact design, adjustable cracking pressure, and secure lock wire feature for reliable performance.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Superlok SRVL Series 12mm Low Pressure Relief Valve
$129.99
Quantity: 1
Claim Your Seller Account
Superlok SRVL Series 12mm Low Pressure Relief Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Superlok SRVL Series 12mm Low Pressure Relief Valve is a reliable solution designed for precise pressure control in industrial settings. With a maximum working pressure of 300 psig, this valve ensures optimal performance in diverse applications. Its compact design, adjustable cracking pressure, and lock wire feature provide versatility and security. Every valve undergoes rigorous testing at the factory, guaranteeing consistent and dependable operation. Ideal for meeting institutional procurement requirements with repeatable set pressure and superior performance.
Product Specifications
Features Features
Compact designCracking pressure adjustable externallyLock wire feature secures a given pressure settingEach and every valve is tested at the factory
Note Note

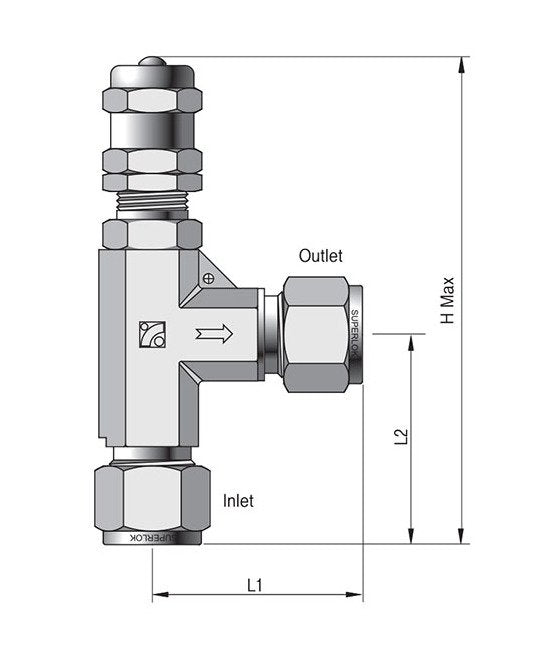

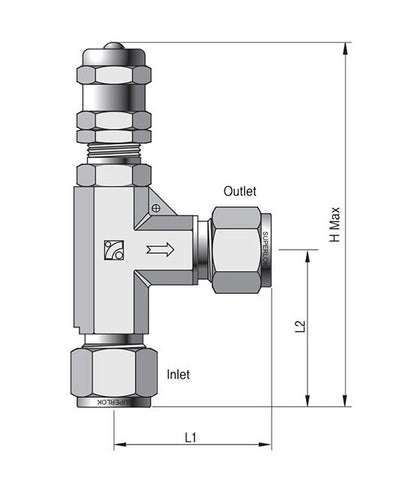

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Set Pressure Set Pressure
Set pressure is the upstream pressure at which the first indication of flow occurs.Set pressure of each valve after initial relief is repeatable within ±5% at room temperature
Technical Specs Cracking Pressure Range
10~250 psig | 0.69~17.2 bar
Technical Specs Dimension H
114.0 mm
Technical Specs Dimension L1
46.7 mm
Technical Specs Dimension L2
46.7 mm
Technical Specs Inlet End Connections
12 mm Superlok®
Technical Specs Maximum Working Pressure
300 psig | 206 bar
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
12 mm Superlok®
Technical Specs Series
SRVL
