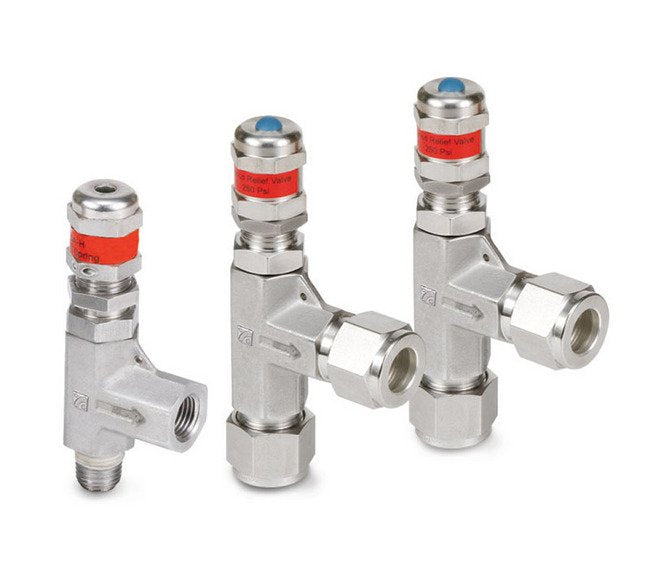

Superlok SRVL Series 3/8 Inch Low Pressure Relief Valve
Superlok SRVL Series 3/8 Inch Low Pressure Relief Valve
SKU:REL-62f013
Experience precision pressure relief with the Superlok SRVL Series 3/8 Inch Low Pressure Relief Valve for compact and reliable performance.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Superlok SRVL Series 3/8 Inch Low Pressure Relief Valve
$59.99
Quantity: 1
Claim Your Seller Account
Superlok SRVL Series 3/8 Inch Low Pressure Relief Valve
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Superlok SRVL Series 3/8 Inch Low Pressure Relief Valve is expertly designed to provide reliable pressure relief in a compact form. With a maximum working pressure of 300 psig, adjustable cracking pressure ranging from 10 to 250 psig, and a precise orifice size of 4.8 mm, this valve ensures optimal performance. Its lock wire feature secures pressure settings, and each valve is rigorously tested for quality assurance. Whether used in industrial settings or government procurement, this valve guarantees consistent operation and peace of mind.
Product Specifications
Features Features
Compact designCracking pressure adjustable externallyLock wire feature secures a given pressure settingEach and every valve is tested at the factory
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Set Pressure Set Pressure
Set pressure is the upstream pressure at which the first indication of flow occurs.Set pressure of each valve after initial relief is repeatable within ±5% at room temperature
Technical Specs Cracking Pressure Range
10~250 psig | 0.69~17.2 bar

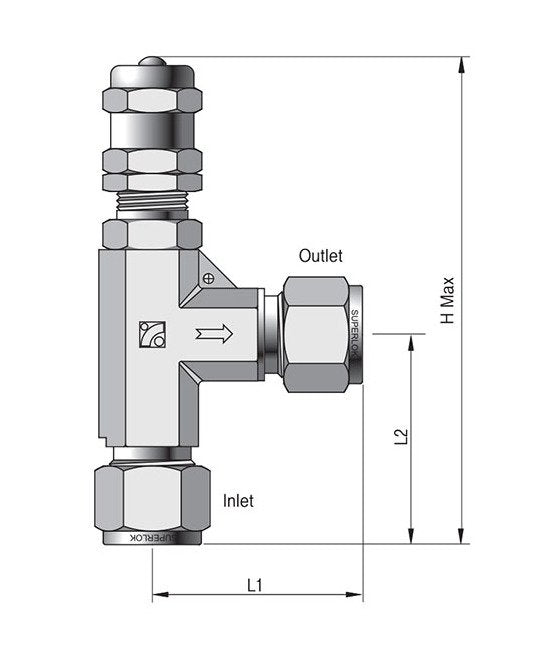

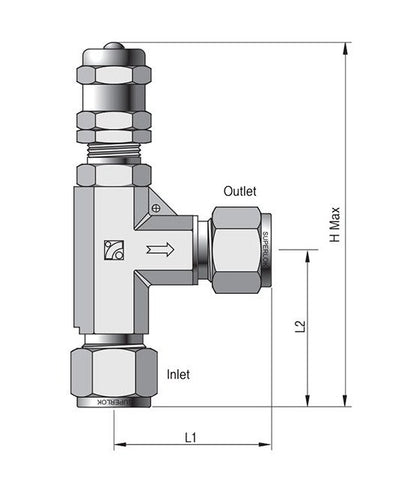

Technical Specs Dimension H
111.7 mm
Technical Specs Dimension L1
44.4 mm
Technical Specs Dimension L2
44.4 mm
Technical Specs Inlet End Connections
3/8 in. SUPERLOK®
Technical Specs Maximum Working Pressure
300 psig | 206 bar
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
3/8 in. SUPERLOK®
Technical Specs Series
SRVL
