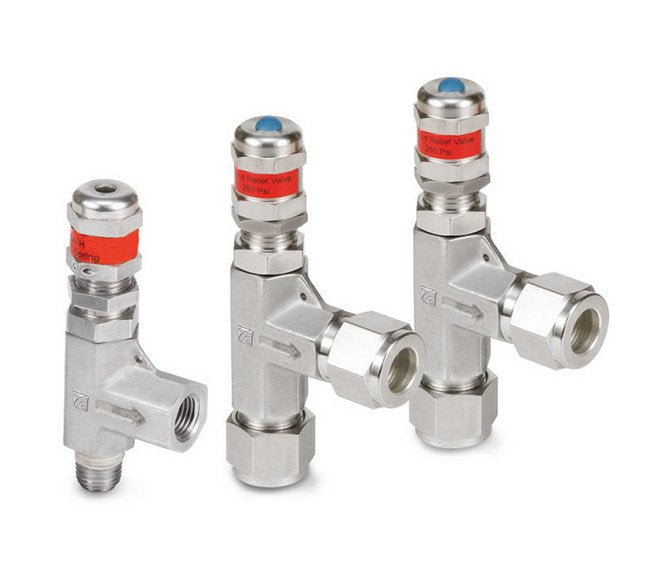

Superlok SRVL Series 8mm Low Pressure Relief Valve
Superlok SRVL Series 8mm Low Pressure Relief Valve
SKU:REL-fb7846
High-quality Superlok SRVL Series 8mm relief valve with adjustable cracking pressure and secure pressure settings, suitable for low-pressure systems.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Superlok SRVL Series 8mm Low Pressure Relief Valve
$149.99
Quantity: 1
Claim Your Seller Account
Superlok SRVL Series 8mm Low Pressure Relief Valve
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Superlok SRVL Series 8mm Low Pressure Relief Valve is designed with multiple springs offering a range of set pressure options to suit various applications. With a maximum working pressure of 6000 psig, adjustable cracking pressure from 225 to 6000 psig, and a compact design, this valve provides reliable relief in low-pressure systems. Each valve is factory tested for quality assurance and features lock wire functionality for securing pressure settings. Ideal for institutional and government buyers seeking precise and repeatable relief valve solutions.
Product Specifications
Features Features
Compact designCracking pressure adjustable externallyLock wire feature secures a given pressure settingEach and every valve is tested at the factory
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Set Pressure Set Pressure
Set pressure is the upstream pressure at which the first indication of flow occurs.Set pressure of each valve after initial relief is repeatable within ±5% at room temperature
Technical Specs Cracking Pressure Range
225~6000 psig | 15.5~414 bar

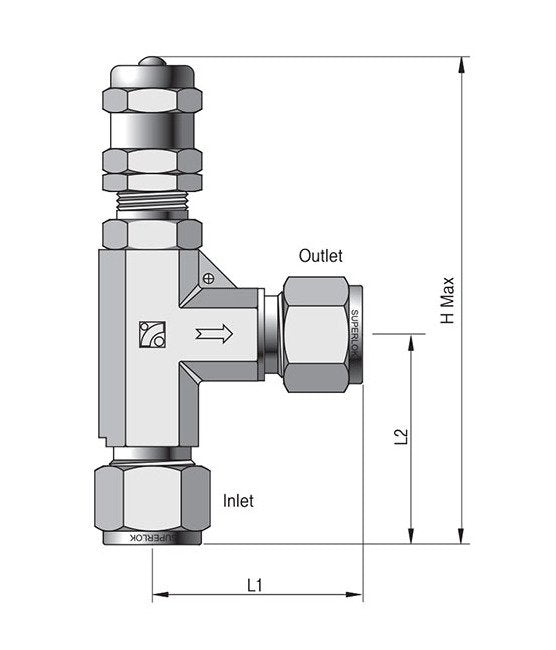

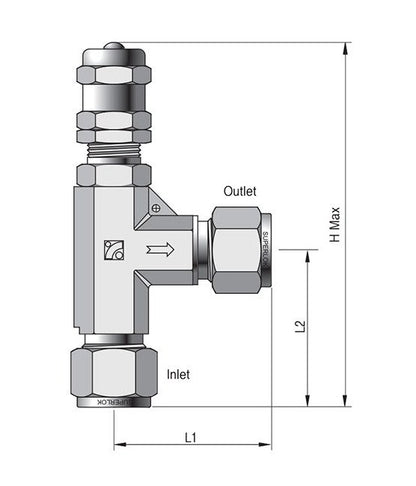

Technical Specs Dimension H
104.6 mm
Technical Specs Dimension L1
38.7 mm
Technical Specs Dimension L2
37.3 mm
Technical Specs Inlet End Connections
8 mm Superlok®
Technical Specs Maximum Working Pressure
6000 psig | 413 bar
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
8 mm Superlok®
Technical Specs Series
SRVH
