Superlok SRVL Series Low Pressure Relief Valve

Superlok SRVL Series Low Pressure Relief Valve

SKU:REL-1cd408

Superlok SRVL Series Low Pressure Relief Valve - Maximum 300 psig, Adjustable Cracking Pressure, Tested for Reliability

Regular price $79.99
Regular price Sale price $79.99
Sale

Initiate Order

Superlok SRVL Series Low Pressure Relief Valve

Superlok SRVL Series Low Pressure Relief Valve

$79.99

Quantity: 1

Claim Your Seller Account

Superlok SRVL Series Low Pressure Relief Valve

Superlok SRVL Series Low Pressure Relief Valve

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Superlok SRVL Series 1/2 Inch MNPT Inlet End Connections and 12mm Outlet End Connections Low Pressure Relief Valve offers a maximum working pressure of 300 psig, with a cracking pressure range of 10~250 psig. Its compact design, externally adjustable cracking pressure, and secure lock wire feature make it ideal for various applications. Every valve is factory tested for reliability, ensuring repeatability within ±5% at room temperature. With dimensions that can be customized upon request, this valve is a versatile and reliable choice for both consumer and institutional buyers.

Product Specifications

Features Features
Compact designCracking pressure adjustable externallyLock wire feature secures a given pressure settingEach and every valve is tested at the factory
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Set Pressure Set Pressure
Set pressure is the upstream pressure at which the first indication of flow occurs.Set pressure of each valve after initial relief is repeatable within ±5% at room temperature
Technical Specs Cracking Pressure Range
10~250 psig | 0.69~17.2 bar

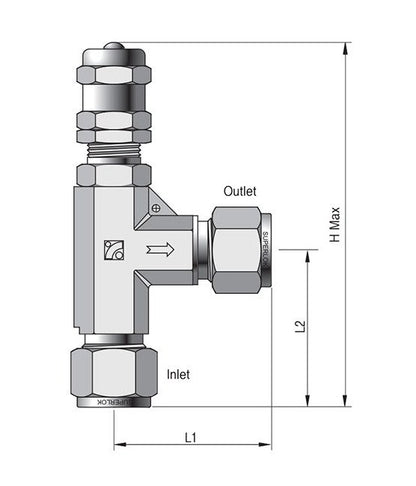

Technical Specs Dimension H
103.0 mm
Technical Specs Dimension L1
46.7 mm
Technical Specs Dimension L2
35.7 mm
Technical Specs Inlet End Connections
1/2 in. Male National Pipe Thread (MNPT)
Technical Specs Maximum Working Pressure
300 psig | 206 bar
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
12 mm Superlok®
Technical Specs Series
SRVL
