Superlok SRVL Series Low Pressure Relief Valve
Superlok SRVL Series Low Pressure Relief Valve
SKU:REL-1dbfb5
Adjustable cracking pressure relief valve for precise flow control and secure pressure settings. Ideal for various applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The Superlok SRVL Series 1/2 Inch Low Pressure Relief Valve is engineered for precision performance under a maximum working pressure of 300 psig. With adjustable cracking pressure, compact design, and factory-tested reliability, this valve offers efficient flow control and secure pressure settings. Ideal for a range of applications, it features 1/2 inch MNPT inlet and 1/2 inch FNPT outlet connections. Ensure consistent flow regulation and safety with this top-quality relief valve.
Product Specifications
Features Features
Compact designCracking pressure adjustable externallyLock wire feature secures a given pressure settingEach and every valve is tested at the factory
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Set Pressure Set Pressure
Set pressure is the upstream pressure at which the first indication of flow occurs.Set pressure of each valve after initial relief is repeatable within ±5% at room temperature
Technical Specs Cracking Pressure Range
10~250 psig | 0.69~17.2 bar

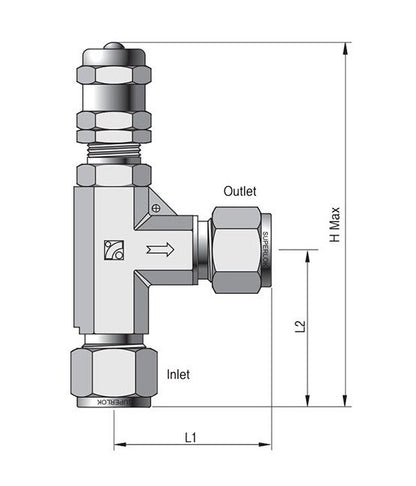

Technical Specs Dimension H
103.0 mm
Technical Specs Dimension L1
38.0 mm
Technical Specs Dimension L2
35.7 mm
Technical Specs Inlet End Connections
1/2 in. Male National Pipe Thread (MNPT)
Technical Specs Maximum Working Pressure
300 psig | 206 bar
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
1/2 in. Female National Pipe Thread (FNPT)
Technical Specs Series
SRVL
