Superlok STV Series 3/8 Inlet/Outlet Toggle Valve
Superlok STV Series 3/8 Inlet/Outlet Toggle Valve
SKU:STV-9f4084
High-performance Superlok STV Series Toggle Valve with 6.4mm orifice & 3/8 in. SUPERLOK® connections. Ideal for precise flow control.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Superlok STV Series 3/8 Inlet/Outlet Toggle Valve
$49.99
Quantity: 1
Claim Your Seller Account
Superlok STV Series 3/8 Inlet/Outlet Toggle Valve
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

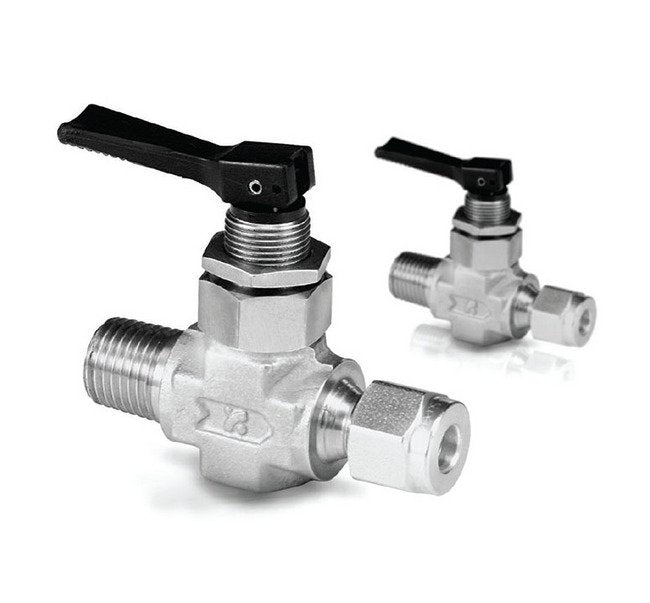

The Superlok STV Series Toggle Valve features a 3/8 inch SUPERLOK® inlet and outlet end connections with a precise 6.4mm orifice size. Constructed from durable 316 stainless steel or brass, this valve offers a compact design, quick actuation, and a wide range of orifice sizes. Tested at the factory, it ensures reliable performance in temperature ranges from -20 to 200°F. Ideal for both consumer and institutional use, this valve provides secure and leak-free connections for various applications.
Product Specifications
Features Features
Compact design.Quick acting.Orifice sizes from 0.080 to 0.250 in. (2.0 to 6.4 mm).Straight, angle flow patterns.SUPERLOK® tube fitting, male and female NPT, and Combination of end connections.Each and every valve is tested at the factory.
Note Note

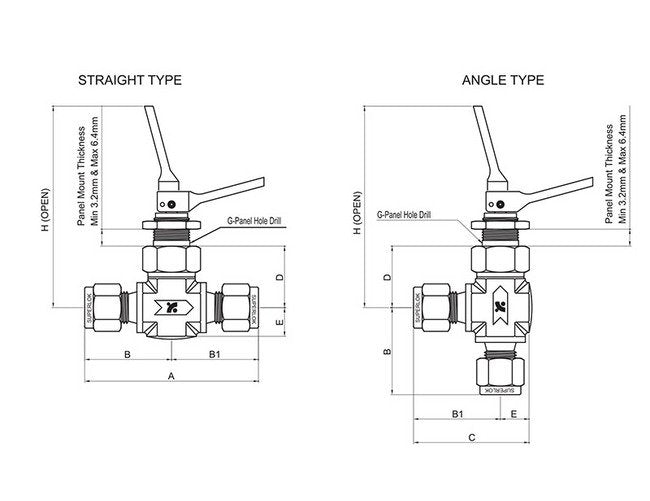

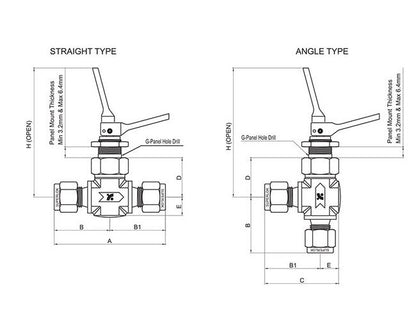

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
65.5 mm
Technical Specs Dimension B
32.8 mm
Technical Specs Dimension B1
32.8 mm
Technical Specs Dimension C
45.5 mm
Technical Specs Dimension D
26.9 mm
Technical Specs Dimension E
12.7 mm
Technical Specs Dimension G
16.8 mm
Technical Specs Dimension H
90.4 mm
Technical Specs Flow Coefficients Cv
0.7
Technical Specs Inlet End Connections
3/8 in. SUPERLOK®
Technical Specs Orifice Size
6.4 mm
Technical Specs Outlet End Connections
3/8 in. SUPERLOK®
Technical Specs O Ring Material
Fluorocarbon (FKM) | Nitrile Butadiene Rubber (NBR) | Perfluoroelastomer (FFKM)
Technical Specs Temperature Rating
-20 to 200 ºF | -28 to 93 ºC
Technical Specs Working Pressure
200 psig | 13.7 bar
