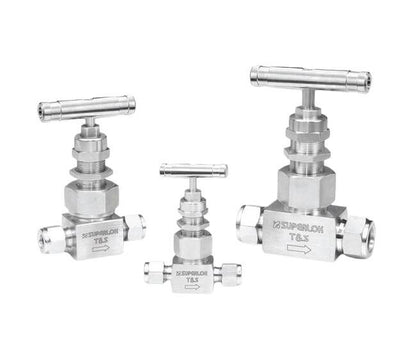

Superlok SUNV Series 6.0mm Orifice Union Bonnet Needle Valve
Superlok SUNV Series 6.0mm Orifice Union Bonnet Needle Valve
SKU:SUN-c4e5fd
Enhance fluid control with precision. Compact, durable, and reliable needle valve for industrial and institutional applications.
Regular price
$179.99
Regular price
Sale price
$179.99
Unit price
per
Initiate Order
Superlok SUNV Series 6.0mm Orifice Union Bonnet Needle Valve
$179.99
Quantity: 1
Claim Your Seller Account
Superlok SUNV Series 6.0mm Orifice Union Bonnet Needle Valve
$179.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your fluid control systems with the Superlok SUNV Series 6.0mm Orifice Union Bonnet Needle Valve. Designed for precision, this valve boasts a compact design, low operating torques, and various stem types to meet diverse operational needs. With temperature ratings from -65 to 1200°F and leak rates as low as 0.1 cm³/min, it ensures reliability in extreme conditions. Tested to 1000 psig, this valve guarantees superior performance and easy installation, making it ideal for industrial, government, and institutional applications.
Product Specifications
Features Features
Compact designLow operating torquesPanel mountableStraight and angle flow patternsNon rotating vee stem tipThree stem type are available
Handle Handle
316 stainless steel, alloy 400 and alloy C-276 body valve - Stainless steel bar handles are standard.Black round knob handles are optional. (SUNV1 and SUNV2 series)Anodized black aluminum bar handles are optional.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Data Temperature Rating For Graphite Packing
-65 to 1200 ºF | -53 to 648 ºC
Technical Data Temperature Rating For Polychlorotrifluoroethylen
-65 to 200 ºF | -53 to 93 ºC
Technical Data Temperature Rating For Polyether Ether Ketone Pee
-65 to 600 ºF | -53 to 315 ºC
Technical Data Temperature Rating For Polytetrafluoroethylene Pt
-65 to 450 ºF | -53 to 232 ºC
Technical Specs Body Material
316 Stainless Steel | Alloy 400 (Monel) | Alloy C-276 (Hastelloy)
Technical Specs Dimension A
38.9 mm
Technical Specs Dimension B1
35.7 mm
Technical Specs Dimension B2
42.1 mm
Technical Specs Dimension C
48.4 mm
Technical Specs Dimension D1
34.1 mm
Technical Specs Dimension D2
34.2 mm
Technical Specs Dimension E1
12.7 mm
Technical Specs Dimension E2
12.7 mm
Technical Specs Dimension F
64.0 mm
Technical Specs Dimension H1
93.7 mm
Technical Specs Dimension H2
93.7 mm
Technical Specs Dimension I
19.9 mm
Technical Specs Dimension L
77.8 mm
Technical Specs Flow Coefficients Cv
0.86
Technical Specs Inlet End Connections
12 mm Superlok®
Technical Specs Maximum Allowable Leak Rate
0.1 cm³/min
Technical Specs Orifice Size
6.0 mm
Technical Specs Outlet End Connections
12 mm Superlok®
Technical Specs Packing
PTFE packing is standard. PEEK and Graphite packing is optional.
Technical Specs Packing Material
Graphite Packing | Polyether Ether Ketone (PEEK) Packing | Polytetrafluoroethylene (PTFE) (Standard)
Technical Specs Stem Type
Non Rotating Vee Stem (Standard) | Regulating Stem | Soft Seat Stem
Testing Testing
Each and every Valve is tested with nitrogen at 1000 psig (69 bar).Valve have max allowable leak rate of 0.1 cm³/min.Shell testing is available upon request
