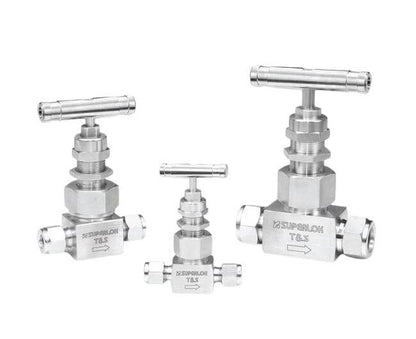

Superlok SUNV Series Union Bonnet Needle Valve - 1 inch Inlet, 11.0mm Orifice

Superlok SUNV Series Union Bonnet Needle Valve - 1 inch Inlet, 11.0mm Orifice

SKU:SUN-4fa3c6

Precision-engineered Superlok SUNV Series Needle Valve for precise flow control in industrial settings.

Regular price $89.99
Regular price Sale price $89.99
Sale

Initiate Order

Superlok SUNV Series Union Bonnet Needle Valve - 1 inch Inlet, 11.0mm Orifice

Superlok SUNV Series Union Bonnet Needle Valve - 1 inch Inlet, 11.0mm Orifice

$89.99

Quantity: 1

Claim Your Seller Account

Superlok SUNV Series Union Bonnet Needle Valve - 1 inch Inlet, 11.0mm Orifice

Superlok SUNV Series Union Bonnet Needle Valve - 1 inch Inlet, 11.0mm Orifice

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Superlok SUNV Series 11.0mm Orifice Size Union Bonnet Needle Valve is meticulously engineered to deliver precise flow control in demanding industrial environments. With a compact design and low operating torques, this valve is panel mountable and available in straight and angle flow patterns. Featuring a non-rotating vee stem tip and three stem types to choose from, this valve ensures reliable performance. Built with high-quality materials and tested to rigorous standards, it offers temperature ratings suitable for a wide range of applications. The optional handle choices provide versatility to meet specific user preferences.

Product Specifications

Features Features
Compact designLow operating torquesPanel mountableStraight and angle flow patternsNon rotating vee stem tipThree stem type are available
Handle Handle
316 stainless steel, alloy 400 and alloy C-276 body valve - Stainless steel bar handles are standard.Anodized black aluminum bar handles are optional.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Data Temperature Rating For Graphite Packing
-65 to 1200 ºF | -53 to 648 ºC
Technical Data Temperature Rating For Polychlorotrifluoroethylen
-65 to 200 ºF | -53 to 93 ºC
Technical Data Temperature Rating For Polyether Ether Ketone Pee
-65 to 600 ºF | -53 to 315 ºC
Technical Data Temperature Rating For Polytetrafluoroethylene Pt
-65 to 450 ºF | -53 to 232 ºC
Technical Specs Body Material
316 Stainless Steel | Alloy 400 (Monel) | Alloy C-276 (Hastelloy)
Technical Specs Dimension A
50.0 mm
Technical Specs Dimension D1
47.6 mm
Technical Specs Dimension E1
17.5 mm
Technical Specs Dimension F
89.0 mm
Technical Specs Dimension H1
123.1 mm
Technical Specs Dimension I
26.2 mm
Technical Specs Dimension L
100.0 mm
Technical Specs Flow Coefficients Cv
2.2
Technical Specs Inlet End Connections
1 in. SUPERLOK®
Technical Specs Maximum Allowable Leak Rate
0.1 cm³/min
Technical Specs Orifice Size
11.0 mm
Technical Specs Outlet End Connections
1 in. SUPERLOK®
Technical Specs Packing
PTFE packing is standard. PEEK and Graphite packing is optional.
Technical Specs Packing Material
Graphite Packing | Polyether Ether Ketone (PEEK) Packing | Polytetrafluoroethylene (PTFE) (Standard)
Technical Specs Stem Type
Non Rotating Vee Stem (Standard) | Regulating Stem | Soft Seat Stem
Testing Testing
Each and every Valve is tested with nitrogen at 1000 psig (69 bar).Valve have max allowable leak rate of 0.1 cm³/min.Shell testing is available upon request
