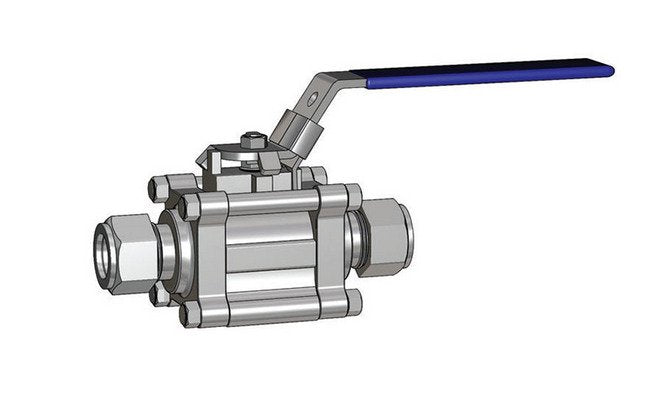

The Superlok SWB 320 Series Swing-Out Ball Valve features an orifice size of 0.281 inches, suitable for high-pressure applications with a pressure rating of 3000 psig. With a temperature rating from -20 to 450 °F and 10 mm SUPERLOK® end connections, this valve ensures reliable performance in a wide range of industrial settings. Each valve undergoes rigorous testing to guarantee leak-free operation and can be customized to meet specific requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

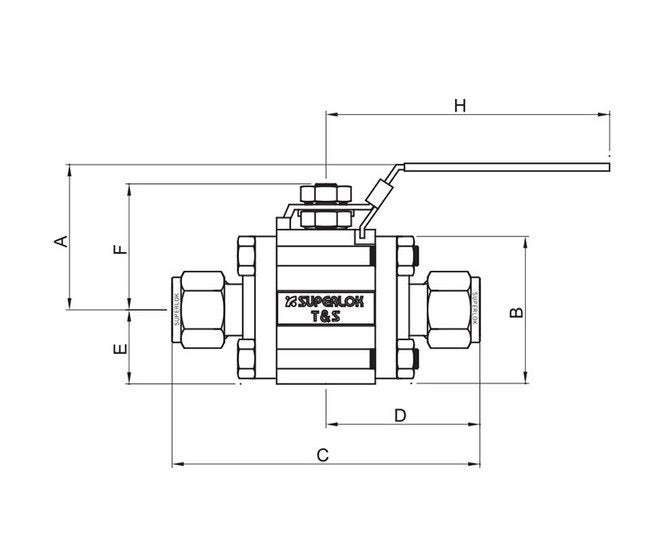

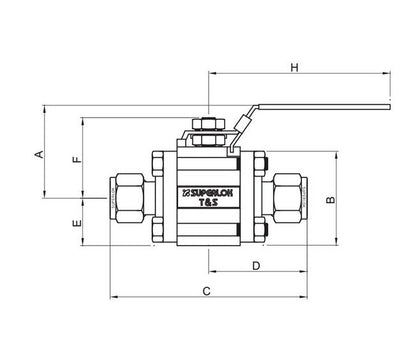

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
47.7 mm
Technical Specs Dimension B
33.0 mm
Technical Specs Dimension C
80.8 mm
Technical Specs Dimension D
40.40 mm
Technical Specs Dimension E
16.75 mm
Technical Specs Dimension F
31.8 mm
Technical Specs Dimension H
57.2 mm
Technical Specs End Connections
10 mm SUPERLOK®
Technical Specs Flow Coefficients Cv
3.8
Technical Specs Orifice Size
7.1 mm | 0.281 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
