Superlok SWB 320 Series 0.875" Orifice Swing-Out Ball Valve
Superlok SWB 320 Series 0.875" Orifice Swing-Out Ball Valve
SKU:SWB-6340b8
High-performance 0.875" Orifice Swing-Out Ball Valve for reliable fluid control
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Superlok SWB 320 Series 0.875" Orifice Swing-Out Ball Valve
$129.99
Quantity: 1
Claim Your Seller Account
Superlok SWB 320 Series 0.875" Orifice Swing-Out Ball Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

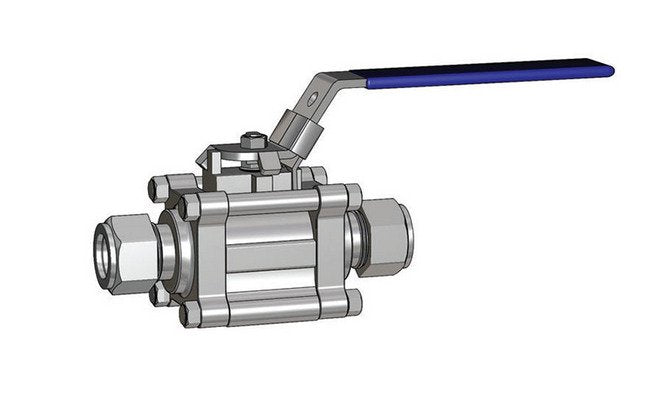

The Superlok SWB 320 Series Swing-Out Ball Valve is a high-performance solution designed for both consumer and institutional use. With an orifice size of 0.875 inches and 1-inch Superlok® end connections, this valve offers a pressure rating of 3000 psig and a temperature range of -20 to 450°F. Each valve undergoes rigorous testing to ensure reliability and safety, meeting industry standards for durability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

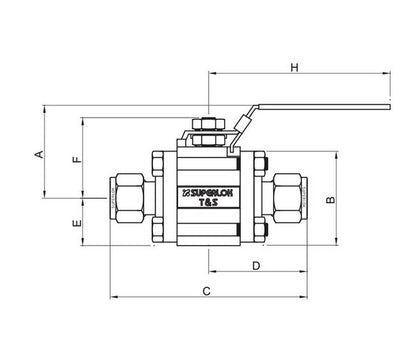

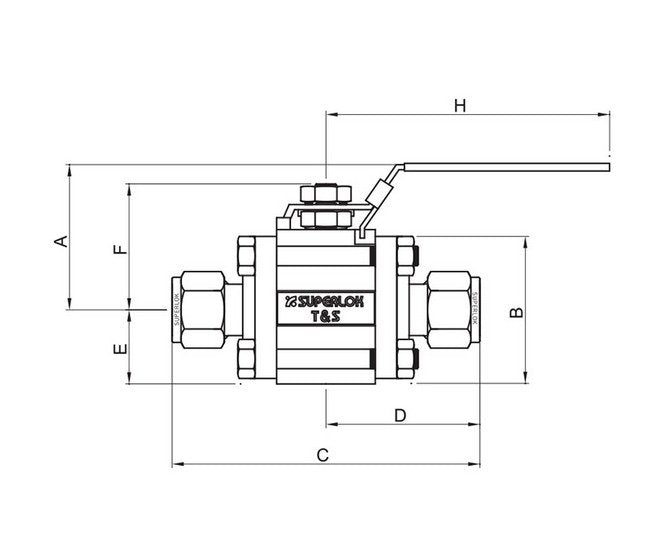

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
79.0 mm
Technical Specs Dimension B
62.0 mm
Technical Specs Dimension C
136.7 mm
Technical Specs Dimension D
68.35 mm
Technical Specs Dimension E
31.0 mm
Technical Specs Dimension F
61.9 mm
Technical Specs Dimension H
149.4 mm
Technical Specs End Connections
1 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
40
Technical Specs Orifice Size
22.2 mm | 0.875 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
