SUPERLOK® SPUV Series 1/2 Inch Tee Type Purge Valve

SUPERLOK® SPUV Series 1/2 Inch Tee Type Purge Valve

SPU-856033

The SUPERLOK® SPUV Series 1/2 Inch Tee Type Purge Valve offers leaktight closure, high pressure, and temperature resistance for manual bleed, vent, or drain applications.

$89.99
$89.99
Sale

Initiate Order

SUPERLOK® SPUV Series 1/2 Inch Tee Type Purge Valve

SUPERLOK® SPUV Series 1/2 Inch Tee Type Purge Valve

$89.99

Quantity: 1

Claim Your Seller Account

SUPERLOK® SPUV Series 1/2 Inch Tee Type Purge Valve

SUPERLOK® SPUV Series 1/2 Inch Tee Type Purge Valve

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The SUPERLOK® SPUV Series 1/2 Inch Tee Type Purge Valve is designed for manual bleed, vent, or drain operations. With a pressure rating of 4000 psig and a temperature range of -54 to 315 ºC, this valve offers leaktight closure and convenient installation. Featuring compact design, a crimped cap for security, and versatile end connections suitable for various systems, this valve ensures reliable performance in demanding environments.

Product Specifications

Application Application
SUPERLOK purge valves are manual bleed, vent, or drain valves. One-quarter turn with a wrench from finger-tight obtains leaktight closure on first makeup. Snugging with a wrench ensures closure to the rated pressure with subsequent makeups.
Caution Caution
When installing a SUPERLOK purge valve, position the vent hole to direct system fluid away from operating personnel. The vent hole rotates with the cap. changing the direction of discharge as the cap is turned. Always open purge valves slowly. These valves contain no packing, so some fluid seepage will occur when the valves are opened. operating personnel must protect themselves from exposure to system fluids.
Features Features
Compact for convenient installation.Vent hole is bled excessive liquid or gas from system lines.Cap is crimped to valve body to prevent accidental disassembly.Variety of end connections : SUPERLOK® tube fittings, NPT and ISO threads.
Note Note

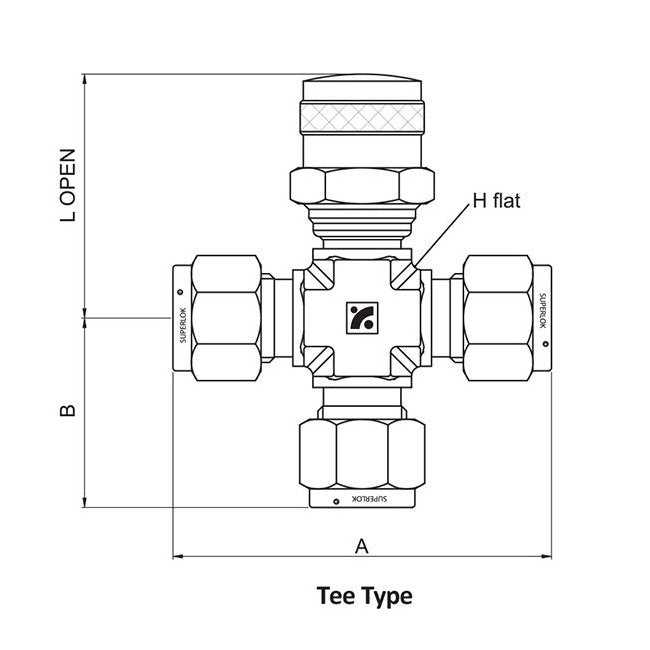

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Data Pressure Rating At 100 Degree Fahrenheit F 38 Deg
4000 psig | 275 bar
Technical Data Temperature Rating
65 to 600 ºF | -54 to 315 ºC
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
2.82 in | 71.6 mm
Technical Specs Dimension B
1.41 in | 35.8 mm
Technical Specs Dimension H
0.81 in | 20.6 mm
Technical Specs Dimension L
1.61 in | 41.0 mm
Technical Specs Inlet End Connections
1/2 in. SUPERLOK®
Technical Specs Pattern Designator
Tee Type
Technical Specs Tube Outside Diameter
1/2 in | 12 mm
