SUPERLOK® SRVL Series Low Pressure Relief Valve
SUPERLOK® SRVL Series Low Pressure Relief Valve
SKU:REL-a7f4b8
Precisely control pressure with the SUPERLOK® SRVL Series Low Pressure Relief Valve. Compact design, adjustable cracking pressure, and reliable performance.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
SUPERLOK® SRVL Series Low Pressure Relief Valve
$59.99
Quantity: 1
Claim Your Seller Account
SUPERLOK® SRVL Series Low Pressure Relief Valve
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUPERLOK® SRVL Series 1/2 Inch Low Pressure Relief Valve is a versatile solution designed for precise pressure control. With a maximum working pressure of 300 psig and a cracking pressure range of 10~250 psig, this valve offers reliability in various applications. Its compact design, externally adjustable cracking pressure, and repeatable pressure settings make it easy to install and maintain. Each valve undergoes rigorous testing to ensure quality and performance, meeting the highest industry standards.
Product Specifications
Features Features
Compact designCracking pressure adjustable externallyLock wire feature secures a given pressure settingEach and every valve is tested at the factory
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Set Pressure Set Pressure
Set pressure is the upstream pressure at which the first indication of flow occurs.Set pressure of each valve after initial relief is repeatable within ±5% at room temperature
Technical Specs Cracking Pressure Range
10~250 psig | 0.69~17.2 bar

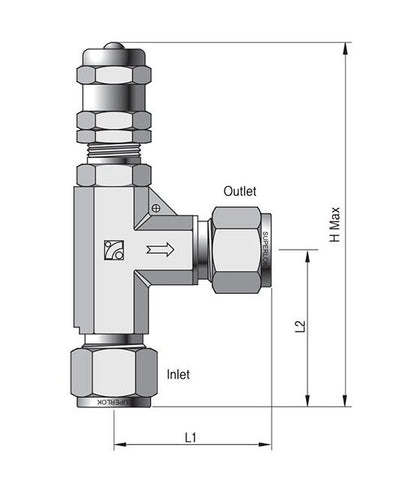

Technical Specs Dimension H
103.0 mm
Technical Specs Dimension L1
46.7 mm
Technical Specs Dimension L2
35.7 mm
Technical Specs Inlet End Connections
1/2 in. Male National Pipe Thread (MNPT)
Technical Specs Maximum Working Pressure
300 psig | 206 bar
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
1/2 in. SUPERLOK®
Technical Specs Series
SRVL
