SUPERLOK® SRVL Series Low Pressure Relief Valve 1/4in MNPT Inlet 1/4in FNPT Outlet

SUPERLOK® SRVL Series Low Pressure Relief Valve 1/4in MNPT Inlet 1/4in FNPT Outlet

REL-6c4ae7

High-performance low pressure relief valve with adjustable cracking pressure. Reliable and compact design for optimal flow control.

$69.99
$69.99
Sale

Initiate Order

SUPERLOK® SRVL Series Low Pressure Relief Valve 1/4in MNPT Inlet 1/4in FNPT Outlet

SUPERLOK® SRVL Series Low Pressure Relief Valve 1/4in MNPT Inlet 1/4in FNPT Outlet

$69.99

Quantity: 1

Claim Your Seller Account

SUPERLOK® SRVL Series Low Pressure Relief Valve 1/4in MNPT Inlet 1/4in FNPT Outlet

SUPERLOK® SRVL Series Low Pressure Relief Valve 1/4in MNPT Inlet 1/4in FNPT Outlet

$69.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The SUPERLOK® SRVL Series Low Pressure Relief Valve is designed with multiple springs for precise set pressure ranges. With a maximum working pressure of 6000 psig, this valve offers a compact design, adjustable cracking pressure, and a lock wire feature for secure pressure settings. Each valve undergoes thorough testing at the factory to ensure reliability and repeatability, meeting the highest quality standards for both consumer and institutional buyers.

Product Specifications

Features Features
Compact designCracking pressure adjustable externallyLock wire feature secures a given pressure settingEach and every valve is tested at the factory
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Set Pressure Set Pressure
Set pressure is the upstream pressure at which the first indication of flow occurs.Set pressure of each valve after initial relief is repeatable within ±5% at room temperature
Technical Specs Cracking Pressure Range
225~6000 psig | 15.5~414 bar

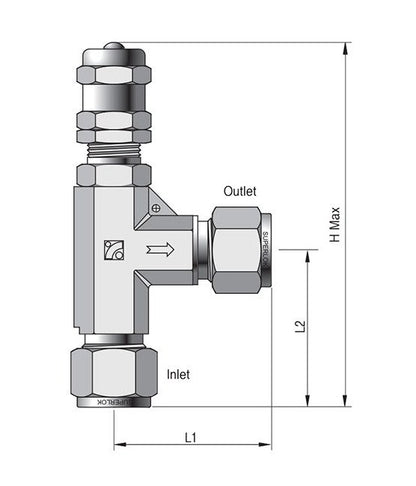

Technical Specs Dimension H
99.5 mm
Technical Specs Dimension L1
30.0 mm
Technical Specs Dimension L2
32.5 mm
Technical Specs Inlet End Connections
1/4 in. Male National Pipe Thread (MNPT)
Technical Specs Maximum Working Pressure
6000 psig | 413 bar
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
1/4 in. Female National Pipe Thread (FNPT)
Technical Specs Series
SRVH
