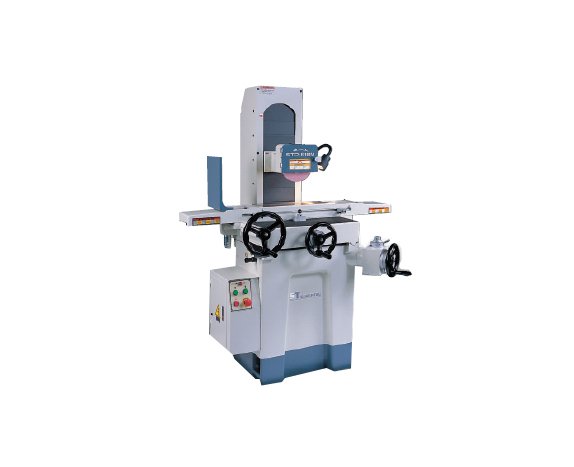

Supertec® 618 Hand Feed Surface Grinder
Supertec® 618 Hand Feed Surface Grinder
SKU:SUP-5f3e0f
Achieve precision grinding with the Supertec® 618 Hand Feed Surface Grinder. Exceptional accuracy, durability, and performance for increased productivity.
Regular price
$12,499.99
Regular price
Sale price
$12,499.99
Unit price
per
Initiate Order
Supertec® 618 Hand Feed Surface Grinder
$12,499.99
Quantity: 1
Claim Your Seller Account
Supertec® 618 Hand Feed Surface Grinder
$12,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your precision grinding operations with the Supertec® 618 Hand Feed Surface Grinder. Built to meet stringent Supertec® specifications, this machine offers exceptional accuracy, durability, and performance. With a work table flatness of 0.00012 in, parallelism of cross movement at 0.000080/6 in, and run-out of wheel taper of 0.000060 in, it ensures high-quality results. This grinder features a 6 x 18 in table size, manual longitudinal and cross movements, 8 x 12 x 1-1/4 in grinding wheel, and a powerful 3 hp spindle motor for efficient grinding operations. Increase productivity and achieve precise grinding with the Supertec® 618 Hand Feed Surface Grinder.
Product Specifications
Specifications Approximate Gross Weight
1808 kg | 822 lb
Specifications Approximate Net Weight
1588 kg | 722 lb
Specifications Approximate Total Rated Power
3 hp | 2.3 kW
Specifications Cross Movement Handwheel Per Graduation
0.001 in | 0.02 mm
Specifications Cross Movement Handwheel Per Revolution
0.2 in | 5 mm
Specifications Cross Movement Manual Travel
7 in | 180 mm
Specifications General Capacity Distance From Table Surface To S
19.3 in | 490 mm
Specifications General Capacity Maximum Grinding Length
19 in | 480 mm
Specifications General Capacity Maximum Grinding Width
6 in | 170 mm
Specifications General Capacity Standard Magnetic Chuck Size
6 x 8 in | 150 x 450 mm
Specifications General Capacity Table Size
6 x 18 in | 150 x 450 mm
Specifications Grinding Wheel Size Od X W X B
8 x 12 x 1-1/4 in | 203 x 12.7 x 31.75 mm
Specifications Grinding Wheel Speed At 50 Hz
2850 rpm
Specifications Grinding Wheel Speed At 60 Hz
3450 rpm
Specifications Longitudinal Movement Manual Travel
20.9 in | 530 mm
Specifications Manufacturer
Supertec®
Specifications Packing Height
76 in | 194 cm
Specifications Packing Length
58 in | 148 cm
Specifications Packing Width
44 in | 110 cm
Specifications Spindle Motor Power
3 hp | 2.3 kW
Specifications Total Floor Height Required
69 in | 1770 mm
Specifications Total Floor Length Required
76 in | 1950 mm
Specifications Total Floor Width Required
43 in | 1100 mm
Specifications Vertical Downfeed Handwheel Per Graduation
0.0001 in | 0.005 mm
Specifications Vertical Downfeed Handwheel Per Graduation Option
0.0000050 in | 0.0001 mm
Specifications Vertical Downfeed Handwheel Per Revolution
0.050 in | 1 mm
Stringent Quality Control To Supertec Specifications Parallelism
0.000080/6 in
Stringent Quality Control To Supertec Specifications Run Out Of
0.000060 in
Stringent Quality Control To Supertec Specifications Work Table
0.00012 in
