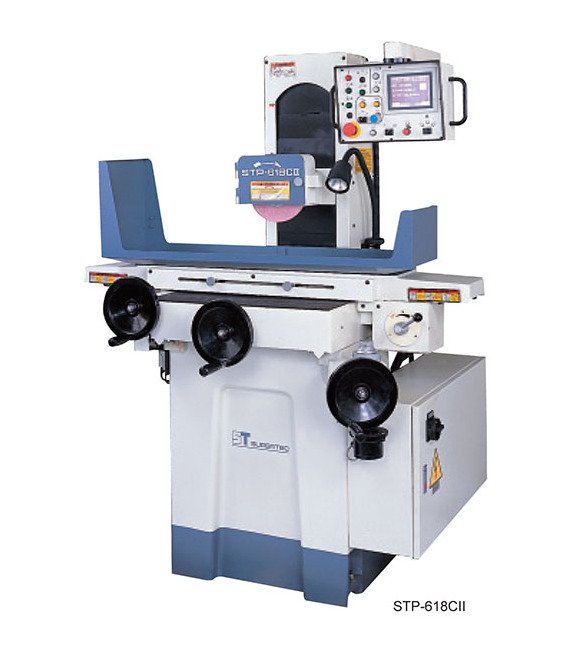

Supertec® 618 Series Hydraulic Table Surface Grinder
Supertec® 618 Series Hydraulic Table Surface Grinder
SKU:SUP-97bf2b
Enhance productivity with the Supertec® 618 Series Hydraulic Surface Grinder. Precision, durability, and efficiency in one machine.
Regular price
$18,999.99
Regular price
Sale price
$18,999.99
Unit price
per
Initiate Order
Supertec® 618 Series Hydraulic Table Surface Grinder
$18,999.99
Quantity: 1
Claim Your Seller Account
Supertec® 618 Series Hydraulic Table Surface Grinder
$18,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience precision and durability with the Supertec® 618 Series Hydraulic Table Surface Grinder. Engineered to stringent quality control standards, this grinder offers exceptional flatness, parallelism, and accuracy in grinding operations. With advanced features like manual and hydraulic movement, variable speeds, and a powerful spindle motor, this machine enhances productivity and performance. Ideal for industrial applications requiring high precision and reliability.
Product Specifications
Specifications Approximate Gross Weight
1995 kg | 907 lb
Specifications Approximate Net Weight
1775 kg | 807 lb
Specifications Approximate Total Rated Power
4.6 hp | 3.5 kW
Specifications Crossfeed Motor Power
25 w
Specifications Cross Movement Approximate Rapid Travel
960 mm/min | 38 in/min
Specifications Cross Movement Automatic Traverse Increment
0.02 to 0.24 in | 0.4 to 6 mm
Specifications Cross Movement Automatic Traverse Travel
6-3/4 in | 170 mm
Specifications Cross Movement Handwheel Per Graduation
0.001 in | 0.02 mm
Specifications Cross Movement Handwheel Per Revolution
0.2 in | 5 mm
Specifications Cross Movement Manual Travel
7 in | 180 mm
Specifications Elevating Motor Power
1/2 hp | 0.4 kW
Specifications General Capacity Distance From Table Surface To S
19.3 in | 490 mm
Specifications General Capacity Maximum Grinding Length
19 in | 480 mm
Specifications General Capacity Maximum Grinding Width
6 in | 170 mm
Specifications General Capacity Standard Magnetic Chuck Size
6 x 8 in | 150 x 450 mm
Specifications General Capacity Table Size
6 x 18 in | 150 x 450 mm
Specifications Grinding Wheel Size Od X W X B
8 x 12 x 1-1/4 in | 203 x 12.7 x 31.75 mm
Specifications Grinding Wheel Speed At 50 Hz
2850 rpm
Specifications Grinding Wheel Speed At 60 Hz
3450 rpm
Specifications Hydraulic Motor Power
1 hp | 0.75 kW
Specifications Longitudinal Movement Hydraulic Travel
20 in | 510 mm
Specifications Longitudinal Movement Manual Travel
20.9 in | 530 mm
Specifications Longitudinal Movement Table Speed Infinitely Vari
5 to 52 m/min | 16 to 82 ft/min
Specifications Manufacturer
Supertec®
Specifications Packing Height
76 in | 194 cm
Specifications Packing Length
61 in | 155 cm
Specifications Packing Width
49 in | 124 cm
Specifications Spindle Motor Power
3 hp | 2.3 kW
Specifications Total Floor Height Required
69 in | 1770 mm
Specifications Total Floor Length Required
76 in | 1950 mm
Specifications Total Floor Width Required
59 in | 1500 mm
Specifications Vertical Downfeed Approximate Rapid Travel
4 in/min | 100 mm/min
Specifications Vertical Downfeed Automatic Traverse Increment
0.0001 to 0.002 in | 0.001 to 0.05 mm
Specifications Vertical Downfeed Handwheel Per Graduation
0.000050 in. (0.0001 mm) Micro Downfeed
Specifications Vertical Downfeed Handwheel Per Revolution
0.050 in. (1 mm) Micro Downfeed
Stringent Quality Control To Supertec Specifications Parallelism
0.0001/18 in
Stringent Quality Control To Supertec Specifications Run Out Of
0.000060 in
Stringent Quality Control To Supertec Specifications Work Table
0.00012 in
