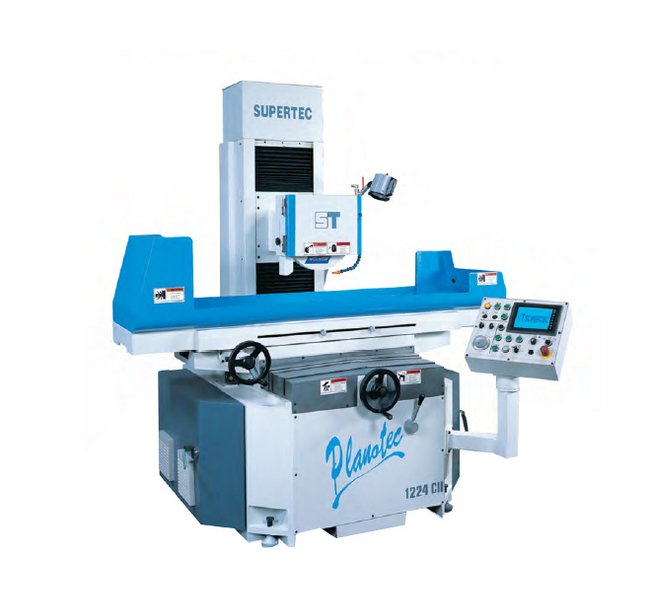

Experience unparalleled precision and reliability with the Supertec® PLANOTEC Surface Grinder. Ideal for both manual and automatic grinding cycles, this machine offers exceptional quality standards and workmanship. Featuring simplified conversational programming for enhanced productivity in tool room or production environments, the PLANOTEC is the operator's choice for superior grinding solutions.
Product Specifications
Additional Equipment 0
A comprehensive range of additional equipment is available upon request to suit an individual requirements.
Note 0
All the specifications shown above are for reference. The manufacturer reserves the right to modify the design, specifications and its mechanisms etc., of the machine without notice.
Optional Accessories 0
Electro-Magnetic ChuckAuto. DemagnetizerSpare Wheel FlangeManual Parallel Dressing AttachmentHydraulic Parallel Dressing AttachmentOverhead Dresser with Auto. Compensation SystemBalancing StandCoolant System (58 L)Coolant System with Paper Filter(20 L/min, 80 L or 60 L/min, 140 L)Coolant system with Magnetic Separator and Paper FilterDust CollectorCombination Coolant and Dust CollectorVariable spindle Speeds for WheelheadDigital ReadoutDynamic Balance System
Planotec Specifications Approximate Gross Weight
8000 lb | 3600 kg
Planotec Specifications Approximate Net Weight
7330 lb | 3300 kg
Planotec Specifications Automatic Wheelhead Vertical Infeed
0.0001 ~ 0.3 mm | 0.000010 ~ 0.01 in
Planotec Specifications Crossfeed Motor Power
1/4 HP (6P)
Planotec Specifications Elevating Motor Power
400 kW | 1/2 hp
Planotec Specifications Grinding Spindle Motor Power
3.75 kW | 5.6 kW | 5 hp | 7.5 hp
Planotec Specifications Grinding Spindle Speed At 50 Hz
1500 rpm
Planotec Specifications Grinding Spindle Speed At 60 Hz
1800 rpm
Planotec Specifications Grinding Wheel Bore Size
5 in | 127 mm
Planotec Specifications Grinding Wheel Diameter
14 in | 355 mm
Planotec Specifications Grinding Wheel Width
50 mm | 2 in
Planotec Specifications Handwheel Per Graduation Mpg Wheelhead V
0.000010 in | 0.0001 in | 0.001 in | 0.0001 mm | 0.001 mm | 0.01 mm
Planotec Specifications Handwheel Per Revolution Mpg Wheelhead V
0.001 in | 0.01 in | 0.1 in | 0.01 mm | 0.1 mm | 1 mm
Planotec Specifications Hydraulic Motor Power
1.5 kW | 2 hp
Planotec Specifications Maximum Crosswise Grinding Width
12 in | 300 mm
Planotec Specifications Maximum Distance From Table Surface To S
24 in | 600 mm
Planotec Specifications Maximum Longitudinal Grinding Length
24 in | 600 mm
Planotec Specifications Packing Height
90.6 in | 230 cm
Planotec Specifications Packing Length
89.4 in | 227 cm
Planotec Specifications Packing Width
82.7 in | 210 cm
Planotec Specifications Standard Chuck Size
12 x 24 in | 300 x 600 mm
Planotec Specifications Table Size
12 x 24 in | 300 x 600 mm
Planotec Specifications X Axis Table Longitudinal Travel Hydraul
26 in | 650 mm
Planotec Specifications X Axis Table Longitudinal Travel Maximum
28 in | 700 mm
Planotec Specifications X Axis Table Longitudinal Travel Table S
3 to 25 m/min | 10 ~ 82 ft/min
Planotec Specifications Z Axis Cross Travel Approximate Rapid Tr
1000 mm/min | 40 in/min
Planotec Specifications Z Axis Cross Travel Automatic Cross Trav
14 in | 360 mm
Planotec Specifications Z Axis Cross Travel Automatic Traverse I
0.02 ~ 0.32 in | 0.5 to 8 mm
Planotec Specifications Z Axis Cross Travel Handwheel Per Gradua
0.001 in | 0.02 mm
Planotec Specifications Z Axis Cross Travel Handwheel Per Revolu
0.2 in | 5 mm
Planotec Specifications Z Axis Cross Travel Maximum Manual Trave
14.5 in | 370 mm

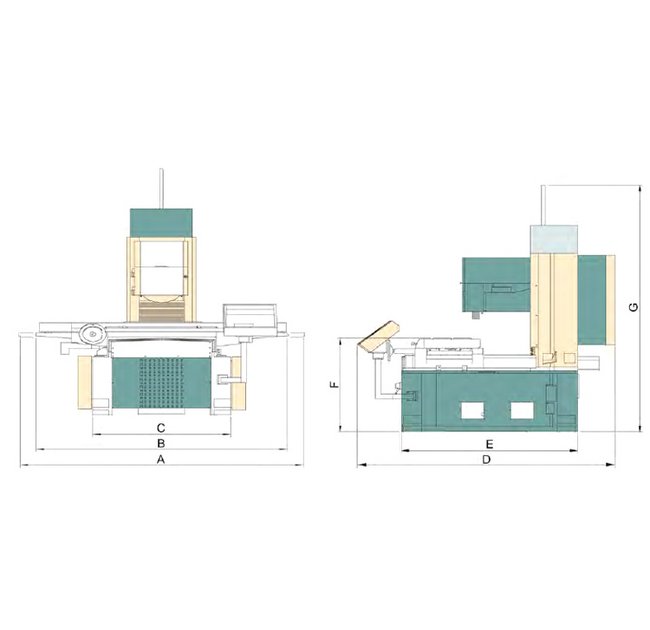

Specifications Dimension A
101.2 in | 2570 mm
Specifications Dimension B
77.6 in | 1970 mm
Specifications Dimension C
42.7 in | 1085 mm
Specifications Dimension D
77.4 in | 1965 mm
Specifications Dimension E
53.9 in | 1370 mm
Specifications Dimension F
38.6 in | 980 mm
