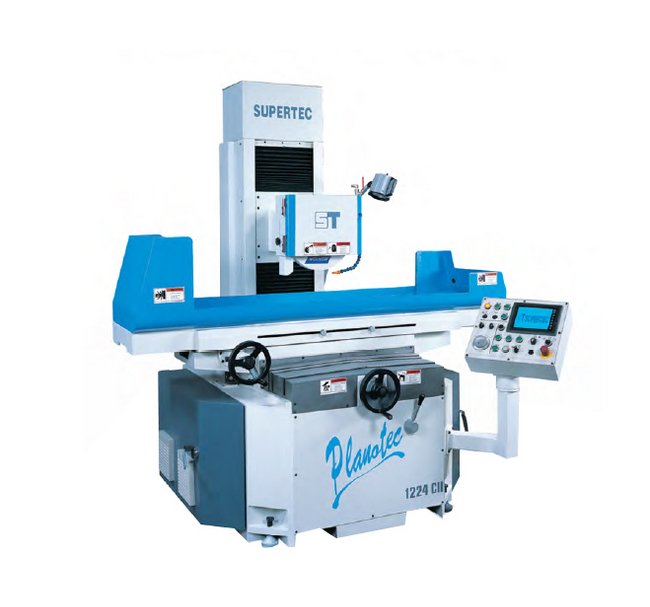

The Supertec® PLANOTEC Surface Grinder is a top-of-the-line precision grinding machine designed for exceptional quality standards in manual and automatic grinding cycles. Made by Supertec®, this grinder ensures accuracy, precision, and reliability, making it ideal for general tool rooms and production environments. With simplified conversational programming enhancing productivity, the PLANOTEC is the operator's choice for delivering the finest surface grinding solutions.
Product Specifications
Additional Equipment 0
A comprehensive range of additional equipment is available upon request to suit an individual requirements.
Note 0
All the specifications shown above are for reference. The manufacturer reserves the right to modify the design, specifications and its mechanisms etc., of the machine without notice.
Optional Accessories 0
Electro-Magnetic ChuckAuto. DemagnetizerSpare Wheel FlangeManual Parallel Dressing AttachmentHydraulic Parallel Dressing AttachmentOverhead Dresser with Auto. Compensation SystemBalancing StandCoolant System (58 L)Coolant System with Paper Filter(20 L/min, 80 L or 60 L/min, 140 L)Coolant system with Magnetic Separator and Paper FilterDust CollectorCombination Coolant and Dust CollectorVariable spindle Speeds for WheelheadDigital ReadoutDynamic Balance System
Planotec Specifications Approximate Gross Weight
9900 lb | 4500 kg
Planotec Specifications Approximate Net Weight
9100 lb | 4100 kg
Planotec Specifications Automatic Wheelhead Vertical Infeed
0.0001 ~ 0.3 mm | 0.000010 ~ 0.01 in
Planotec Specifications Crossfeed Motor Power
1/4 HP (6P)
Planotec Specifications Elevating Motor Power
400 kW | 1/2 hp
Planotec Specifications Grinding Spindle Motor Power
3.75 kW | 5.6 kW | 5 hp | 7.5 hp
Planotec Specifications Grinding Spindle Speed At 50 Hz
1500 rpm
Planotec Specifications Grinding Spindle Speed At 60 Hz
1800 rpm
Planotec Specifications Grinding Wheel Bore Size
5 in | 127 mm
Planotec Specifications Grinding Wheel Diameter
14 in | 355 mm
Planotec Specifications Grinding Wheel Width
50 mm | 2 in
Planotec Specifications Handwheel Per Graduation Mpg Wheelhead V
0.000010 in | 0.0001 in | 0.001 in | 0.0001 mm | 0.001 mm | 0.01 mm
Planotec Specifications Handwheel Per Revolution Mpg Wheelhead V
0.001 in | 0.01 in | 0.1 in | 0.01 mm | 0.1 mm | 1 mm
Planotec Specifications Hydraulic Motor Power
1.5 kW | 2 hp
Planotec Specifications Maximum Crosswise Grinding Width
16 in | 400 mm
Planotec Specifications Maximum Distance From Table Surface To S
24 in | 600 mm
Planotec Specifications Maximum Longitudinal Grinding Length
32 in | 800 mm
Planotec Specifications Packing Height
90.6 in | 230 cm
Planotec Specifications Packing Length
106 in | 270 cm
Planotec Specifications Packing Width
89.4 in | 227 cm
Planotec Specifications Standard Chuck Size
16 x 32 in | 400 x 800 mm
Planotec Specifications Table Size
16 x 32 in | 400 x 800 mm
Planotec Specifications X Axis Table Longitudinal Travel Hydraul
34 in | 850 mm
Planotec Specifications X Axis Table Longitudinal Travel Maximum
36 in | 900 mm
Planotec Specifications X Axis Table Longitudinal Travel Table S
3 to 25 m/min | 10 ~ 82 ft/min
Planotec Specifications Z Axis Cross Travel Approximate Rapid Tr
1000 mm/min | 40 in/min
Planotec Specifications Z Axis Cross Travel Automatic Cross Trav
18 in | 460 mm
Planotec Specifications Z Axis Cross Travel Automatic Traverse I
0.02 ~ 0.32 in | 0.5 to 8 mm
Planotec Specifications Z Axis Cross Travel Handwheel Per Gradua
0.001 in | 0.02 mm
Planotec Specifications Z Axis Cross Travel Handwheel Per Revolu
0.2 in | 5 mm
Planotec Specifications Z Axis Cross Travel Maximum Manual Trave
18.5 in | 470 mm

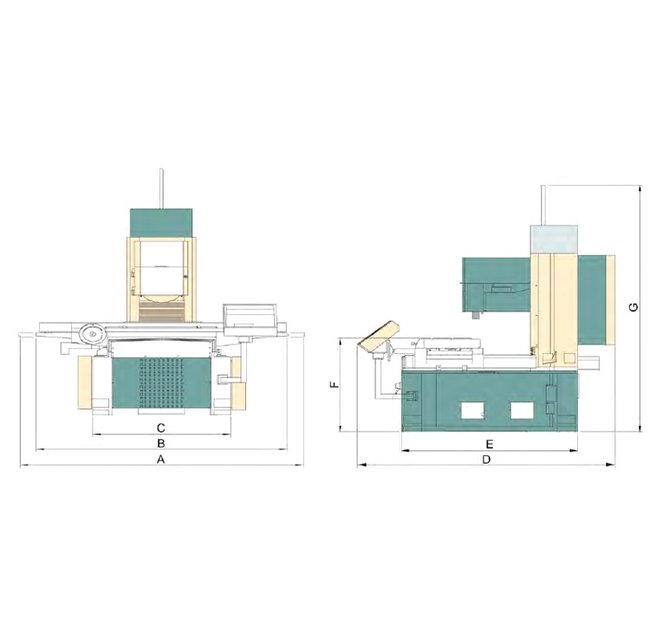

Specifications Dimension A
111 in | 2820 mm
Specifications Dimension B
87.4 in | 2220 mm
Specifications Dimension C
52.6 in | 1335 mm
Specifications Dimension D
83 in | 2110 mm
Specifications Dimension E
59.8 in | 1520 mm
Specifications Dimension F
38.6 in | 980 mm
