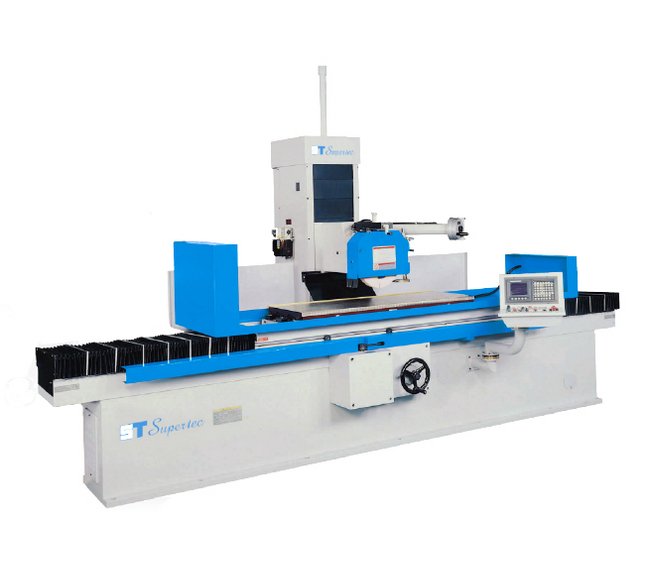

Supertec 2 and 3 Axis Automatic SG Series Precision Surface Grinders
Supertec 2 and 3 Axis Automatic SG Series Precision Surface Grinders
SKU:2AN-8a5d7b
Enhance precision grinding with Supertec SG Series - superior accuracy and stability for diverse grinding needs.
Regular price
$19,999.00
Regular price
Sale price
$19,999.00
Unit price
per
Initiate Order
Supertec 2 and 3 Axis Automatic SG Series Precision Surface Grinders
$19,999.00
Quantity: 1
Claim Your Seller Account
Supertec 2 and 3 Axis Automatic SG Series Precision Surface Grinders
$19,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your precision grinding capabilities with the Supertec SG Series. Featuring a robust design with advanced electronics and Meehanite castings for unmatched accuracy. Equipped with a range of spindle motor powers, auto downfeed, low friction surfaces, and hardened box ways, these grinders ensure exceptional performance, stability, and repeatability for a wide range of grinding applications.
Product Specifications
Additional Information 0
10 hp spindle motor (15 hp optional)20" x 60" grinding area14" x 2" x 5" grinding wheelPLC touch screen control (3 axes)No table over hangAuto lube system
Features Of Column Type Design 0
Here are some of the more popular features of the column type design:10 hp spindle motor (15 hp opt.)Extra wide machine base eliminates table over hangDual hydraulic cylinders on table for smoother reversal movement of tableDouble "V" way on cross and longitudinal axesPLC control with AC servo motor (3 axes)Manual pulse generator (MPG) for vertical movement (wheelhead)Hardened and ground box ways on vertical (wheel head) travel
Features Of Saddle Type Design 0
Double "V" ways on longitudinal and cross ways3 hp spindle motor (SG-1020) 2 or 3 axes5 HP spindle motor (SG-1224) 2 or 3 axes7.5 hp spindle motor (SG-1632)Auto downfeed driven by AC servo motor with rapid up/down on 3 axesAuto lube systemExtra low noise & low temperature growth on hydraulic system & spindle assemblyTwice annealed casting for greater stabilityLow-friction coated surfaces - slideways are hand scraped & coated with Turcite-BSpindle run-out 0.0001" TIRHardened and ground box ways on vertical travel

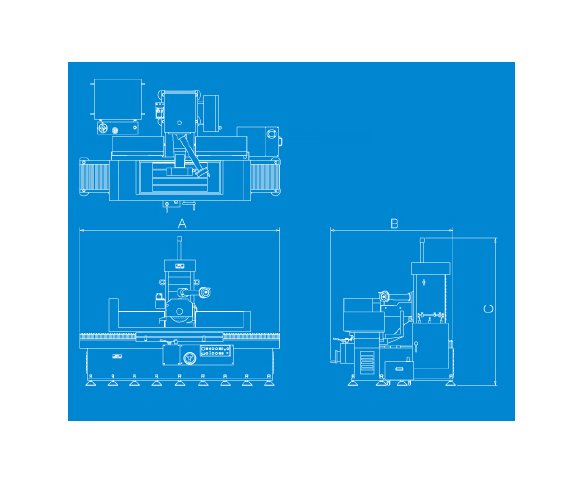

Specifications Dimension A
4700 in
Specifications Dimension B
1970 in
Specifications Dimension C
2280 in
Specifications Grinding Surface Of Table
20 x 60 in
Specifications Manufacturer
Supertec®
Specifications Spindle Motor Power
10 hp
Specifications Spindle Motor Power Optional
15 hp
Specifications Wheel Inside Diameter
5 in
Specifications Wheel Outside Diameter
14 in
Specifications Wheel Width
2 in
