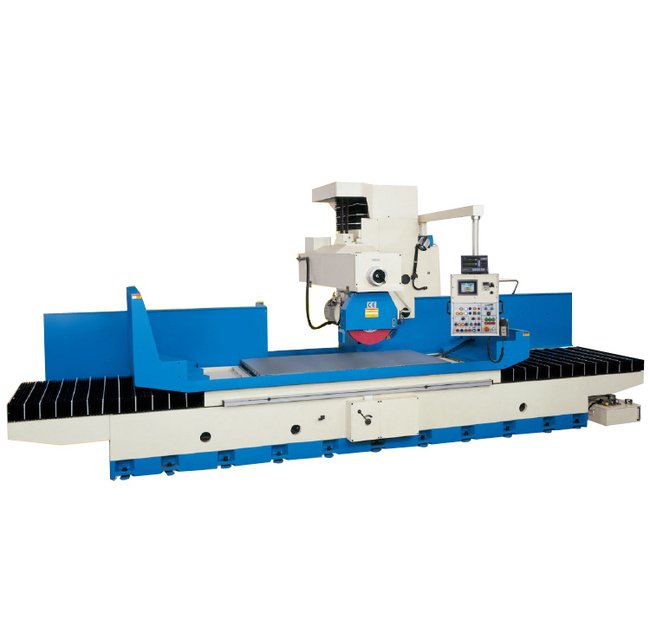

Supertec Over Arm Surface Grinders
Supertec Over Arm Surface Grinders
SKU:OVE-501794
Achieve precise surface grinding with Supertec Over Arm Surface Grinder. Powerful motor, large grinding capacity, and essential accessories for efficient performance.
Regular price
$78,999.00
Regular price
Sale price
$78,999.00
Unit price
per
Initiate Order
Supertec Over Arm Surface Grinders
$78,999.00
Quantity: 1
Claim Your Seller Account
Supertec Over Arm Surface Grinders
$78,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Supertec Over Arm Surface Grinder is a precision-engineered machine designed for superior surface grinding performance. With a Table Clamping Surface Width of 32 inches and a Maximum Grinding Length of 157.5 inches, this grinder ensures exceptional accuracy and efficiency. Equipped with a powerful Spindle Motor Power of 15 hp (optionally up to 25 hp), it delivers consistent results for various applications. The included Standard Accessories such as Grinding Wheel, Coolant System, and Balancing Arbor enhance user convenience and productivity. This machine is a reliable choice for industries demanding high-quality surface grinding capabilities.
Product Specifications
Note 0
Manufacturer reserves the right to change or improve specifications without notice.
Optional Accessories 0
Vertical Spindle Grinding EquipmentElectro-Magnetic Chuck (includes Rectifier with Automatic Demagnetizing )Spare Wheel FlangeBalancing StandHalogen Machine LampCoolant System with Paper FilterMagnetic Dust SeparatorDRO 1 Or 2 Axisvariable Speed Spindle
Specifications Approximate Net Weight
42020 lb
Specifications Auto Downfeed Servo Motor
0.0005 to 0.002 in
Specifications Chuck Weight
4140 lb
Specifications Continuous Crossfeed
0.9 to 5 ft/min
Specifications Crossfeed Intermittent
0.004 to 1.57 in/feed
Specifications Crossfeed Per Division
0.0001 in | 0.001 in | 0.005 in
Specifications Down Feed Per Division Mpg
0.0001 in | 0.0005 in | 0.001 in
Specifications Down Feed Per Revolution Mpg
0.01 in | 0.05 in | 0.1 in
Specifications Floor Height
110 in
Specifications Floor Height Optional
118 in
Specifications Floor Length
452 in
Specifications Floor Width
122 in
Specifications Grinding Wheel Inside Diameter
5 in
Specifications Grinding Wheel Inside Diameter Optional
5 in
Specifications Grinding Wheel Outside Diameter
16 in
Specifications Grinding Wheel Outside Diameter Optional
16 in
Specifications Grinding Wheel Width
2 in
Specifications Grinding Wheel Width Optional
3 in
Specifications Hydraulic Pump Motor Power
10 hp
Specifications Longitudinal Table Speed
10 to 105 ft/min
Specifications Manufacturer
Supertec®
Specifications Maximum Cross Travel
33.86 in
Specifications Maximum Distance Between Spindle Center To Table
31.5 in
Specifications Maximum Distance Between Spindle Center To Table
39.4 in
Specifications Maximum Grinding Length
157.5 in
Specifications Maximum Grinding Width
31.5 in
Specifications Maximum Longitudinal Travel
163.4 in
Specifications Maximum Workpiece On Chuck
5060 lb
Specifications Spindle Motor Power
15 hp
Specifications Spindle Motor Power Optional
25 hp
Specifications Spindle Speed At 50 Hz
1450 rpm
Specifications Spindle Speed At 60 Hz
1720 rpm
Specifications Table Clamping Surface Length
165.4 in
Specifications Table Clamping Surface Width
32 in
Specifications Total Motor Power
26.5 hp | 36.5 hp
Standard Accessories 0
Grinding Wheel - 1 Pc.Wheel Flange - 1 setCoolant System - 1 setTools with Box - 1 setBalancing Arbor - 1 Pc.Wheel Extractor - 1 setChiller for Hydraulic Oil - 1 setHydro Static System - 1 set
