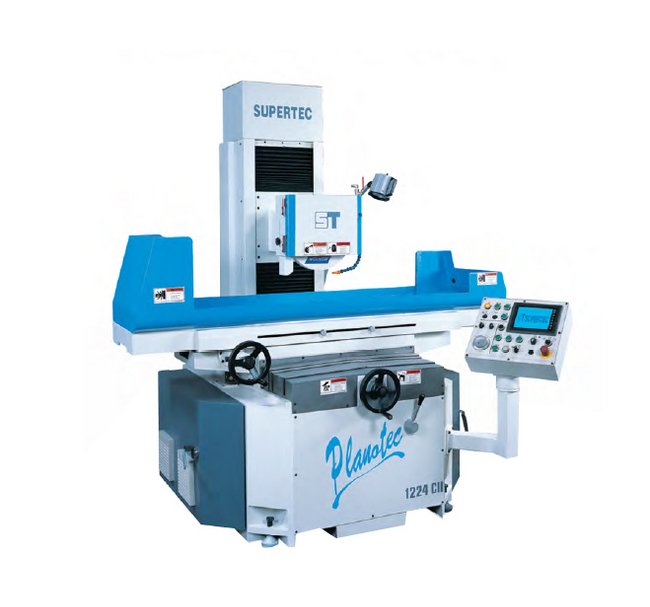

• Supertec PLANOTEC Surface Grinder - Image 1
  • Supertec PLANOTEC Surface Grinder - Image 2
1 2
EDM Sales & Supplies, Inc. →

Supertec PLANOTEC Surface Grinder

Supertec PLANOTEC Surface Grinder

PLA-6bb170

Enhance precision and productivity with the Supertec PLANOTEC Surface Grinder by Supertec®. Ideal for manual and automatic grinding cycles in various settings.

$28,999.99
$28,999.99
Sale

Initiate Order

Supertec PLANOTEC Surface Grinder

Supertec PLANOTEC Surface Grinder

$28,999.99

Quantity: 1

Claim Your Seller Account

Supertec PLANOTEC Surface Grinder

Supertec PLANOTEC Surface Grinder

$28,999.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Supertec PLANOTEC Surface Grinder is a precision machine designed for manual and automatic grinding cycles. Crafted with exceptional quality by Supertec®, it ensures accuracy, precision, and reliability for general tool room or simple production environments. Featuring simplified conversational programming for increased productivity, this grinder is set to become the operator's choice, offering a finest solution for surface grinding needs.

Product Specifications

Additional Equipment 0
A comprehensive range of additional equipment is available upon request to suit an individual requirements.
Note 0
All the specifications shown above are for reference. The manufacturer reserves the right to modify the design, specifications and its mechanisms etc., of the machine without notice.
Optional Accessories 0
Electro-Magnetic ChuckAuto. DemagnetizerSpare Wheel FlangeManual Parallel Dressing AttachmentHydraulic Parallel Dressing AttachmentOverhead Dresser with Auto. Compensation SystemBalancing StandCoolant System (58 L)Coolant System with Paper Filter(20 L/min, 80 L or 60 L/min, 140 L)Coolant system with Magnetic Separator and Paper FilterDust CollectorCombination Coolant and Dust CollectorVariable spindle Speeds for WheelheadDigital ReadoutDynamic Balance System
Planotec Specifications Approximate Gross Weight
6560 lb | 2980 kg
Planotec Specifications Approximate Net Weight
5780 lb | 2600 kg
Planotec Specifications Automatic Wheelhead Vertical Infeed
0.0001 ~ 0.3 mm | 0.000010 ~ 0.01 in
Planotec Specifications Crossfeed Motor Power
1/4 HP (6P)
Planotec Specifications Elevating Motor Power
400 kW | 1/2 hp
Planotec Specifications Grinding Spindle Motor Power
3.75 kW | 5 hp
Planotec Specifications Grinding Spindle Speed At 50 Hz
1500 rpm
Planotec Specifications Grinding Spindle Speed At 60 Hz
1800 rpm
Planotec Specifications Grinding Wheel Bore Size
3 in | 76.2 mm
Planotec Specifications Grinding Wheel Diameter
12 in | 305 mm
Planotec Specifications Grinding Wheel Width
32 mm | 1-1/4 in
Planotec Specifications Handwheel Per Graduation Mpg Wheelhead V
0.000010 in | 0.0001 in | 0.001 in | 0.0001 mm | 0.001 mm | 0.01 mm
Planotec Specifications Handwheel Per Revolution Mpg Wheelhead V
0.001 in | 0.01 in | 0.1 in | 0.01 mm | 0.1 mm | 1 mm
Planotec Specifications Hydraulic Motor Power
1.5 kW | 2 hp
Planotec Specifications Maximum Crosswise Grinding Width
8 in | 200 mm
Planotec Specifications Maximum Distance From Table Surface To S
20 in | 500 mm
Planotec Specifications Maximum Longitudinal Grinding Length
20 in | 500 mm
Planotec Specifications Packing Height
86.6 in | 220 cm
Planotec Specifications Packing Length
74.8 in | 190 cm
Planotec Specifications Packing Width
74.8 in | 190 cm
Planotec Specifications Standard Chuck Size
8 x 20 in | 200 x 500 mm
Planotec Specifications Table Size
8 x 20 in | 200 x 500 mm
Planotec Specifications X Axis Table Longitudinal Travel Hydraul
22 in | 550 mm
Planotec Specifications X Axis Table Longitudinal Travel Maximum
24 in | 600 mm
Planotec Specifications X Axis Table Longitudinal Travel Table S
3 to 25 m/min | 10 ~ 82 ft/min
Planotec Specifications Z Axis Cross Travel Approximate Rapid Tr
1000 mm/min | 40 in/min
Planotec Specifications Z Axis Cross Travel Automatic Cross Trav
9.6 in | 245 mm
Planotec Specifications Z Axis Cross Travel Automatic Traverse I
0.02 ~ 0.32 in | 0.5 to 8 mm
Planotec Specifications Z Axis Cross Travel Handwheel Per Gradua
0.001 in | 0.02 mm
Planotec Specifications Z Axis Cross Travel Handwheel Per Revolu
0.2 in | 5 mm
Planotec Specifications Z Axis Cross Travel Maximum Manual Trave
10 in | 255 mm

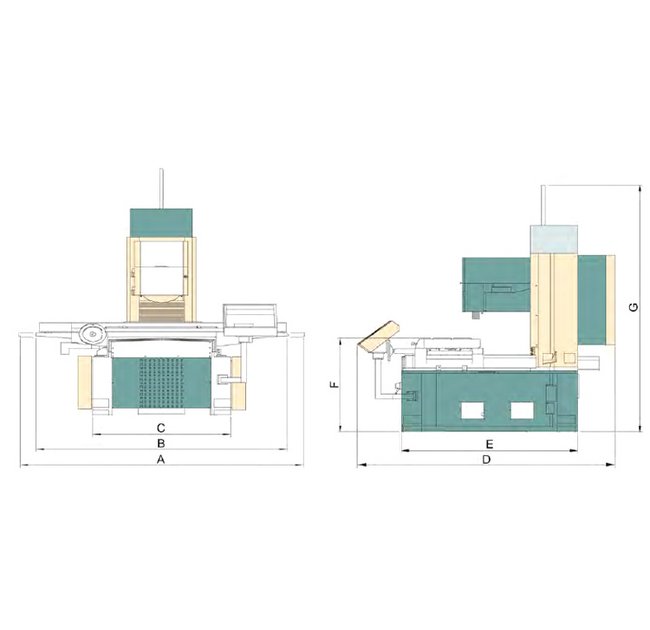

Specifications Dimension A
96.5 in | 2450 mm
Specifications Dimension B
72.8 in | 1850 mm
Specifications Dimension C
40.6 in | 1030 mm
Specifications Dimension D
73 in | 1855 mm
Specifications Dimension E
49.2 in | 1250 mm
Specifications Dimension F
37.4 in | 950 mm
