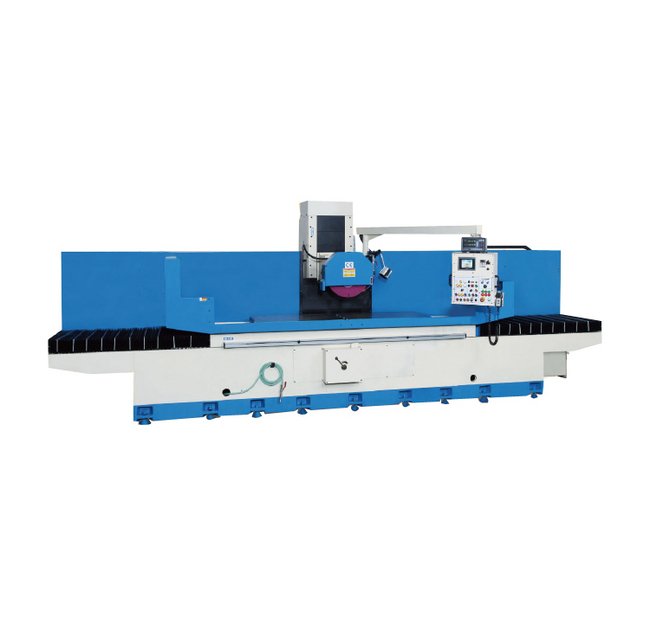

Supertec Precision Surface Grinding Machine - Heavy Duty Column Type Series
Supertec Precision Surface Grinding Machine - Heavy Duty Column Type Series
SKU:COL-50288d
Achieve precision grinding excellence with Supertec's Heavy Duty Surface Grinding Machine. Designed for high precision and efficiency in heavy-duty applications.
Regular price
$53,999.00
Regular price
Sale price
$53,999.00
Unit price
per
Initiate Order
Supertec Precision Surface Grinding Machine - Heavy Duty Column Type Series
$53,999.00
Quantity: 1
Claim Your Seller Account
Supertec Precision Surface Grinding Machine - Heavy Duty Column Type Series
$53,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Supertec Precision Surface Grinding Machine is an advanced solution for high-precision grinding applications in heavy-duty environments. With a table clamping surface width of 24 inches and length of 124 inches, it offers superior grinding width and length capabilities. Equipped with a variety of precise downfeed and crossfeed options, this machine ensures exceptional accuracy and efficiency. The inclusion of standard accessories like Grinding Wheel, Coolant System, and Tools with Box enhances operational convenience. Ideal for industrial settings requiring top-tier grinding performance and reliability.
Product Specifications
Note 0
GT Column Surface Grinders 2A-2Axis Automatic, 3A-3Axis Automatic.Model 2A is two axis automatic with rapid down feed, model 3A is three axis automatic and auto-stop. Y & Z axis are driven by servo motor with touch screen panel NC control.Manufacturer reserves the right to change or improve specifications without notice.
Optional Accessories 0
Vertical Spindle Grinding EquipmentElectro-Magnetic Chuck (includes Rectifier with Automatic Demagnetizing )Spare Wheel FlangeBalancing StandHalogen Machine LampCoolant System with Paper FilterMagnetic Dust SeparatorDRO 1 Or 2 Axisvariable Speed Spindle
Specifications Approximate Net Weight
24200 lb
Specifications Arm Movement Type Grinding Area
32 x 48 ~ 40 x 220 in²
Specifications Auto Downfeed Servo Motor
0.0005 to 0.002 in
Specifications Chuck Weight
1790 lb
Specifications Continuous Crossfeed
0.9 to 5 ft/min
Specifications Crossfeed Intermittent
0.004 to 1.57 in/feed
Specifications Crossfeed Per Division
0.0001 in | 0.001 in | 0.005 in
Specifications Double Column Type Grinding Area
48 x 80 ~ 80 x 240 in²
Specifications Downfeed Per Division Mpg
0.0001 in | 0.0005 in | 0.001 in
Specifications Downfeed Per Revolution Mpg
0.01 in | 0.05 in | 0.1 in
Specifications Floor Height
96.8 in
Specifications Floor Length
329 in
Specifications Floor Width
117 in
Specifications Grinding Wheel Inside Diameter
5 in
Specifications Grinding Wheel Inside Diameter Optional
5 in
Specifications Grinding Wheel Outside Diameter
20 in
Specifications Grinding Wheel Outside Diameter Optional
20 in
Specifications Grinding Wheel Width
2 in
Specifications Grinding Wheel Width Optional
3 in
Specifications Hydraulic Pump Motor Power 6 Pole
10 hp
Specifications Longitudinal Table Speed
10 to 105 ft/min
Specifications Manufacturer
Supertec®
Specifications Maximum Cross Travel
26 in
Specifications Maximum Distance Between Spindle Center To Table
31.5/39.4 in
Specifications Maximum Grinding Length
120 in
Specifications Maximum Grinding Width
24 in
Specifications Maximum Workpiece On Chuck
4400 lb
Specifications Saddle Movement Type Grinding Area
6 x 14 ~ 18 x 40 in²
Specifications Spindle Motor Power Optional
15/25 hp
Specifications Spindle Speed At 50 Hz
1450 rpm
Specifications Spindle Speed At 60 Hz
1720 rpm
Specifications Table Clamping Surface Length
124 in
Specifications Table Clamping Surface Width
24 in
Specifications Total Motor Power
26.5 hp | 36.5 hp
Standard Accessories 0
Grinding Wheel - 1 Pc.Wheel Flange - 1 setCoolant System - 1 setTools with Box - 1 setBalancing Arbor - 1 Pc.Wheel Extractor - 1 setChiller for Hydraulic Oil - 1 setHydro Static System - 1 set
