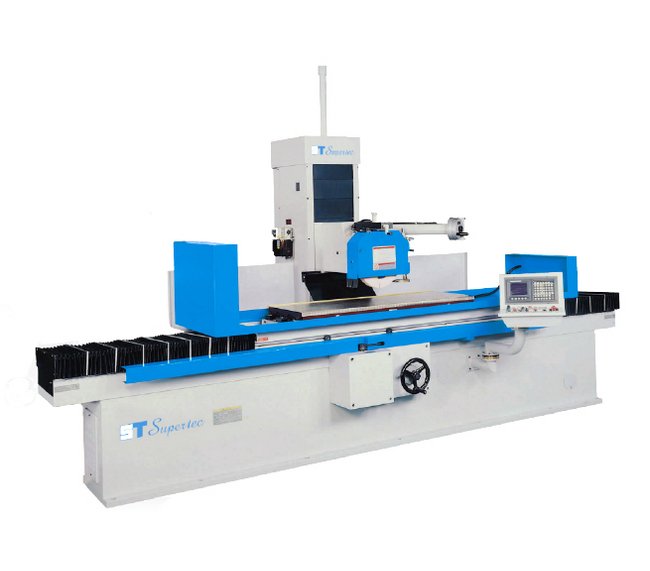

Enhance your precision grinding operations with the Supertec SG Series Precision Surface Grinders. Featuring state-of-the-art electronics and heavy-duty Meehanite castings, these grinders offer unmatched accuracy and repeatability. With a variety of spindle motor powers and innovative features like double 'V' ways, auto lube system, and low-friction coated surfaces, the SG Series ensures superior performance and stability in every application. Ideal for industrial, government, and institutional use, these surface grinders are designed to meet the highest standards of efficiency and precision.
Product Specifications
Additional Information 0
10 hp spindle motor (15 hp optional)20" x 40" grinding area14" x 2" x 5" grinding wheelPLC touch screen control (3 axes)No table over hangAuto lube system
Features Of Column Type Design 0
Here are some of the more popular features of the column type design:10 hp spindle motor (15 hp opt.)Extra wide machine base eliminates table over hangDual hydraulic cylinders on table for smoother reversal movement of tableDouble "V" way on cross and longitudinal axesPLC control with AC servo motor (3 axes)Manual pulse generator (MPG) for vertical movement (wheelhead)Hardened and ground box ways on vertical (wheel head) travel
Features Of Saddle Type Design 0
Double "V" ways on longitudinal and cross ways3 hp spindle motor (SG-1020) 2 or 3 axes5 HP spindle motor (SG-1224) 2 or 3 axes7.5 hp spindle motor (SG-1632)Auto downfeed driven by AC servo motor with rapid up/down on 3 axesAuto lube systemExtra low noise & low temperature growth on hydraulic system & spindle assemblyTwice annealed casting for greater stabilityLow-friction coated surfaces - slideways are hand scraped & coated with Turcite-BSpindle run-out 0.0001" TIRHardened and ground box ways on vertical travel

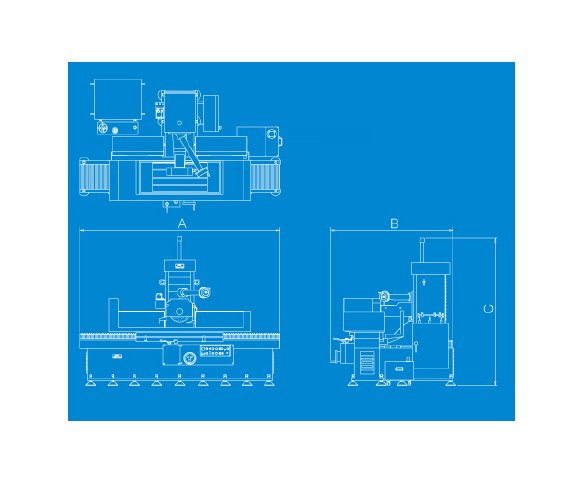

Specifications Dimension A
3200 in
Specifications Dimension B
1970 in
Specifications Dimension C
2280 in
Specifications Grinding Surface Of Table
20 x 40 in
Specifications Manufacturer
Supertec®
Specifications Spindle Motor Power
10 hp
Specifications Spindle Motor Power Optional
15 hp
Specifications Wheel Inside Diameter
5 in
Specifications Wheel Outside Diameter
14 in
Specifications Wheel Width
2 in
