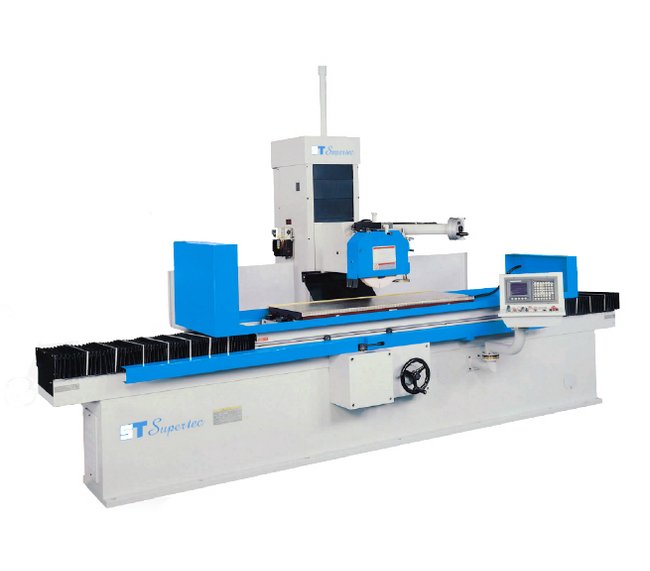

Supertec SG Series Precision Surface Grinders - 2 & 3 Axis Automatic
Supertec SG Series Precision Surface Grinders - 2 & 3 Axis Automatic
SKU:2AN-bd4e9e
Achieve precision and repeatability with Supertec SG Series Precision Surface Grinders - ideal for efficient surface grinding tasks.
Regular price
$25,999.00
Regular price
Sale price
$25,999.00
Unit price
per
Initiate Order
Supertec SG Series Precision Surface Grinders - 2 & 3 Axis Automatic
$25,999.00
Quantity: 1
Claim Your Seller Account
Supertec SG Series Precision Surface Grinders - 2 & 3 Axis Automatic
$25,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Supertec SG Series Precision Surface Grinders are built with cutting-edge machine tool design, boasting heavy-duty Meehanite castings for enhanced accuracy and repeatability. With options for 2 or 3 axes, these grinders feature a range of spindle motor powers, auto downfeed driven by AC servo motor, extra stability from twice-annealed casting, low-friction coated surfaces, and precise machining with spindle run-out at 0.0001" TIR. The column type design offers additional features like a 10 hp spindle motor, dual hydraulic cylinders for smooth table movement, PLC control, and hardened box ways for optimal vertical travel.
Product Specifications
Additional Information 0
10 hp spindle motor (15 hp optional)20" x 48" grinding area14" x 2" x 5" grinding wheelPLC touch screen control (3 axes)No table over hangAuto lube system
Features Of Column Type Design 0
Here are some of the more popular features of the column type design:10 hp spindle motor (15 hp opt.)Extra wide machine base eliminates table over hangDual hydraulic cylinders on table for smoother reversal movement of tableDouble "V" way on cross and longitudinal axesPLC control with AC servo motor (3 axes)Manual pulse generator (MPG) for vertical movement (wheelhead)Hardened and ground box ways on vertical (wheel head) travel
Features Of Saddle Type Design 0
Double "V" ways on longitudinal and cross ways3 hp spindle motor (SG-1020) 2 or 3 axes5 HP spindle motor (SG-1224) 2 or 3 axes7.5 hp spindle motor (SG-1632)Auto downfeed driven by AC servo motor with rapid up/down on 3 axesAuto lube systemExtra low noise & low temperature growth on hydraulic system & spindle assemblyTwice annealed casting for greater stabilityLow-friction coated surfaces - slideways are hand scraped & coated with Turcite-BSpindle run-out 0.0001" TIRHardened and ground box ways on vertical travel

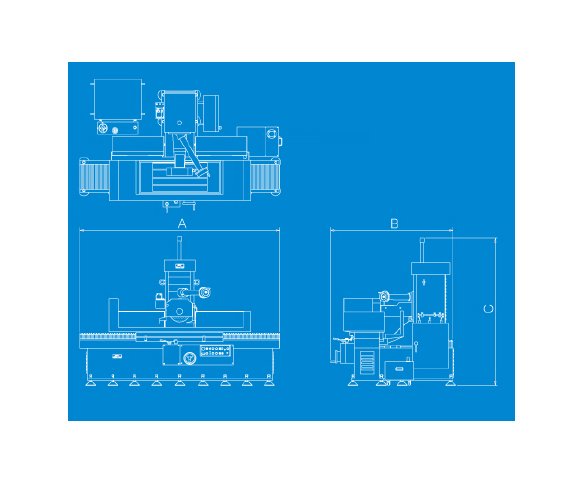

Specifications Dimension A
4000 in
Specifications Dimension B
1970 in
Specifications Dimension C
2280 in
Specifications Grinding Surface Of Table
20 x 48 in
Specifications Manufacturer
Supertec®
Specifications Spindle Motor Power
10 hp
Specifications Spindle Motor Power Optional
15 hp
Specifications Wheel Inside Diameter
5 in
Specifications Wheel Outside Diameter
14 in
Specifications Wheel Width
2 in
