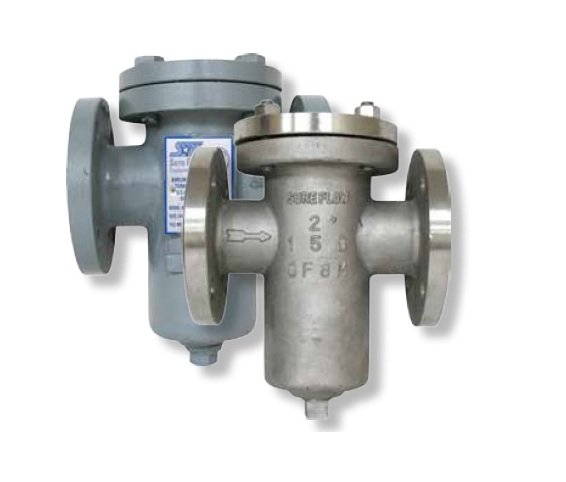

Sure Flow 1 1/2'' Cast 316 Stainless Steel Basket Strainer

Sure Flow 1 1/2'' Cast 316 Stainless Steel Basket Strainer

BAS-6c6b29

Sure Flow BF150SS 1 1/2'' Cast 316 Stainless Steel Basket Strainer, ASME Class 150, 275 psi at 100°F. ISO 9001:2008 compliant.

$299.99
$299.99
Sale

Initiate Order

Sure Flow 1 1/2'' Cast 316 Stainless Steel Basket Strainer

Sure Flow 1 1/2'' Cast 316 Stainless Steel Basket Strainer

$299.99

Quantity: 1

Claim Your Seller Account

Sure Flow 1 1/2'' Cast 316 Stainless Steel Basket Strainer

Sure Flow 1 1/2'' Cast 316 Stainless Steel Basket Strainer

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sure Flow BF150SS 1 1/2'' Cast 316 Stainless Steel Basket Strainer is built to efficiently filter debris with its stainless steel screen. Featuring a lifting handle for easy maintenance, this ASME Class 150 strainer ensures reliable performance. With ASTM A351 Grade CF8M construction, it can withstand up to 275 psi at 100°F WOG temperature. The 3/16'' perforated standard screen with 0.045'' openings provides superior filtration, meeting ISO 9001:2008 standards.

Product Specifications

Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast 316 Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast 316 Stainless Steel
Construction Screen Material
Stainless Steel

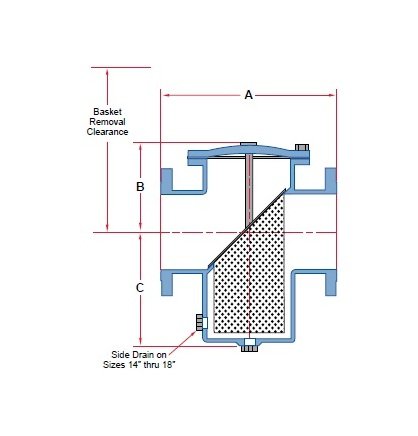

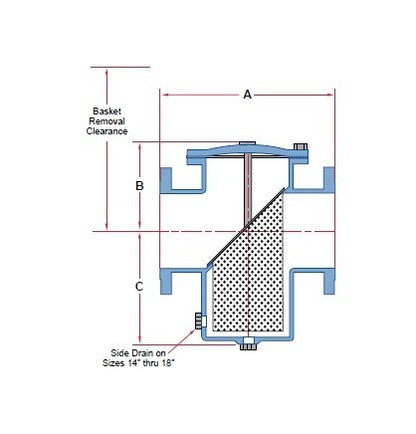

Dimensions Basket Removal Clearance
10 3/4 in
Dimensions Blow Off National Pipe Thread Npt Size
1/2 in
Dimensions Dimension A
6 1/2 in
Dimensions Dimension B
3 1/8 in
Dimensions Dimension C
4 1/2 in
Dimensions Prefix Size
0150
Dimensions Shipping Weight
22 lb
Dimensions Size
1 1/2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceDrain location may differ from image shownASME Section VIII, DIV 1, Current Edition: U and UM Code Stamp AvailableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Specifications Strainer Type
Basket
Standard Screens Perforated Standard Screen
3/16 in
Standard Screens Screen Opening
0.045 in
