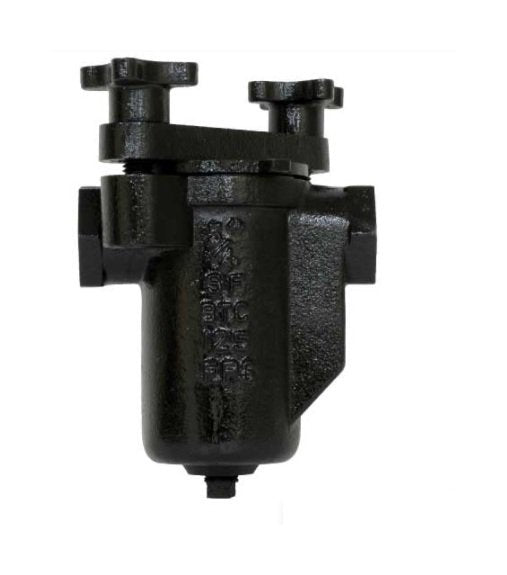

Sure Flow 1/2 Inch NPT Simplex Cast Iron Basket Strainer

Sure Flow 1/2 Inch NPT Simplex Cast Iron Basket Strainer

BAS-57f4a7

Efficiently remove solid particulates with the Sure Flow 1/2 Inch NPT Simplex Cast Iron Basket Strainer, featuring top removal and Swivel Clamp Cover for easy maintenance.

$99.99
$99.99
Sale

Initiate Order

Sure Flow 1/2 Inch NPT Simplex Cast Iron Basket Strainer

Sure Flow 1/2 Inch NPT Simplex Cast Iron Basket Strainer

$99.99

Quantity: 1

Claim Your Seller Account

Sure Flow 1/2 Inch NPT Simplex Cast Iron Basket Strainer

Sure Flow 1/2 Inch NPT Simplex Cast Iron Basket Strainer

$99.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sure Flow 1/2 Inch NPT Simplex Cast Iron Basket Strainer is designed for applications with high solid particulate content, offering top removal of the basket screen for easy cleaning and maintenance. Featuring a Swivel Clamp Cover with BUNA-N O-ring seals, this strainer allows quick screen removal without tools. Constructed with ASTM A126 Class B Cast Iron body and ASTM A126 Class B Buna-N O-Ring cover material, and a stainless steel screen, it meets ISO 9001:2008 standards ensuring quality and reliability. Operates at 200 psi pressure and is suitable for water, oil, and gas.

Product Specifications

Construction Body Material
American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
American Society for Testing and Materials (ASTM) A126 Class B Buna-N O-Ring
Construction Screen Material
Stainless Steel

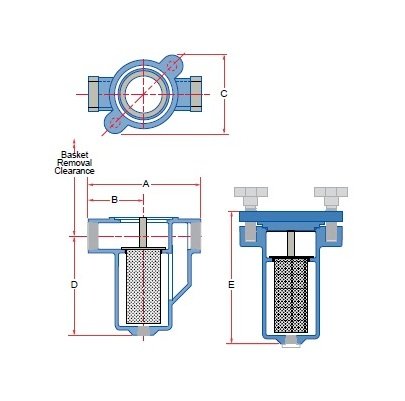

Dimensions Basket Removal Clearance
5 7/8 in
Dimensions Dimension A
6 3/8 in
Dimensions Dimension B
2 13/16 in
Dimensions Dimension C
5 7/16 in
Dimensions Dimension D
5 1/4 in
Dimensions Dimension E
7 in
Dimensions Drain Size
1/2 in
Dimensions Prefix Size
0050
Dimensions Shipping Weight
18 lb
Dimensions Size
1/2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
