Sure Flow 1.5" Bleed & Flush Ring, 1440 psi, 100°F WOG

Sure Flow 1.5" Bleed & Flush Ring, 1440 psi, 100°F WOG

LIN-d870ec

Durable Sure Flow 1.5" Bleed & Flush Ring for high-pressure applications, ASME Class 150 & ISO 9001:2008 compliant

$89.99
$89.99
Sale

Initiate Order

Sure Flow 1.5" Bleed & Flush Ring, 1440 psi, 100°F WOG

Sure Flow 1.5" Bleed & Flush Ring, 1440 psi, 100°F WOG

$89.99

Quantity: 1

Claim Your Seller Account

Sure Flow 1.5" Bleed & Flush Ring, 1440 psi, 100°F WOG

Sure Flow 1.5" Bleed & Flush Ring, 1440 psi, 100°F WOG

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

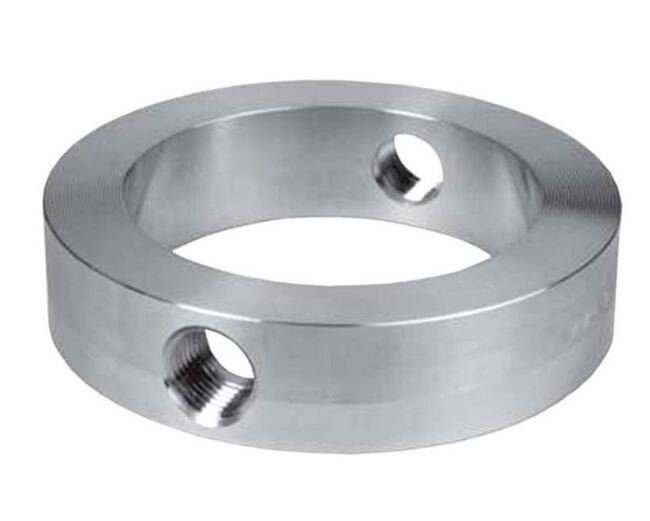

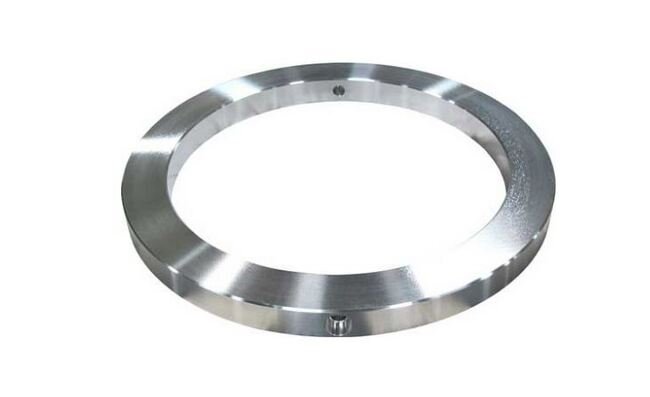

The Sure Flow 1.5" Bleed and Flushing Ring is a robust solution designed to endure high-pressure and temperature variations, meeting ASME Class 150 and ISO 9001:2008 standards. Constructed from premium SA516 Gr.70 and 304/316 Stainless Steel materials, this ring offers exceptional durability. With threaded or socket-weld taps, it ensures secure installation and easy maintenance. Ideal for water, oil, and gas applications, this product is primed with a durable coat for added protection.

Product Specifications

Additional Information Additional Information
Sure Flow Equipment Bleed Rings and Flushing Rings are produced in strict accordance with the following codes of practice:ASME B16.5ASME B16.20ASME B16.47 (For larger diameter flanges)

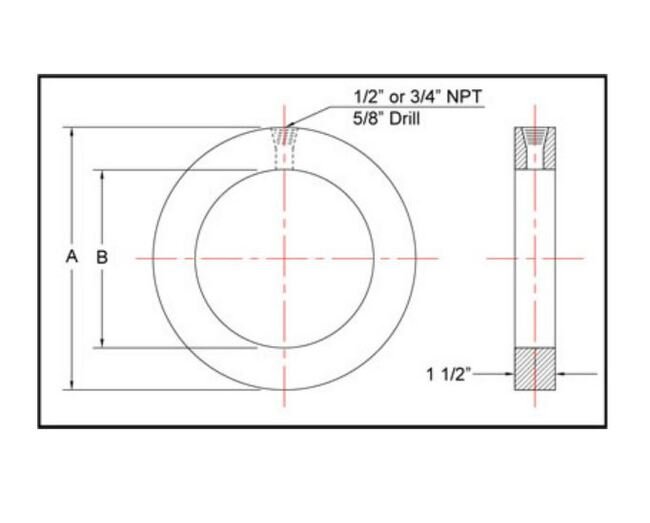

Dimensions Dimension A
3 5/8 in
Dimensions Dimension B
1 7/8 in
Dimensions Size
1 1/2 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Standard with 125-250 AARH Serrated FinishHigher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1440 psi
Operating Pressures And Temperatures Pressure At 489 Degree Fahr
600 psi
Specifications Material
Stainless Steel
Specifications Prefix Size
0150
Specifications Standard Material
SA516 Gr.70304 Stainless Steel316 Stainless Steel
Specifications Thread Size
1/2 in | 3/4 in
