Sure Flow 1.5" Bronze Flanged Duplex Strainer
Sure Flow 1.5" Bronze Flanged Duplex Strainer
SKU:DUP-868346
Ensure pipeline integrity with the Sure Flow 1.5" Bronze Flanged Duplex Strainer featuring a unique flow diverter valve design and ASME CL.150 certification.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Sure Flow 1.5" Bronze Flanged Duplex Strainer
$349.99
Quantity: 1
Claim Your Seller Account
Sure Flow 1.5" Bronze Flanged Duplex Strainer
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 1.5-inch Bronze Flanged Duplex Strainer is a reliable solution for removing dirt and debris from pipelines while safeguarding critical system components. With a unique flow diverter valve cartridge design, this strainer prevents fluid bypass and ensures continuous system flow. The easy-to-turn handle diverts flow between chambers for uninterrupted operation, indicating clearly which chamber is in use. Maintenance is hassle-free with no special tools required for basket cleaning, thanks to the dynamic diverter cartridge seals and easily replaceable parts. The ASME CL.150-certified body with a standard vent for quick venting makes this duplex strainer ideal for demanding industrial applications.
Product Specifications
Additional Information Additional Information

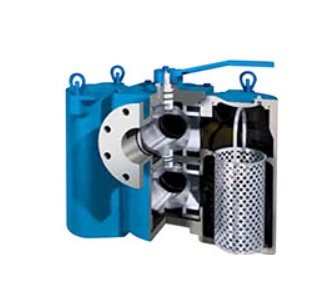

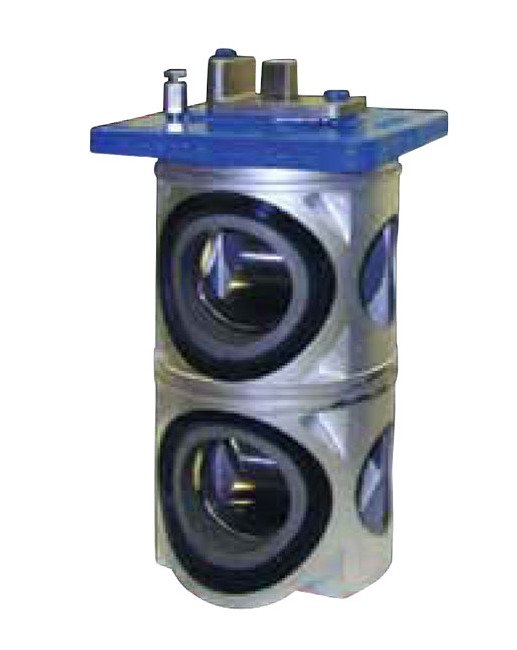

A unique flow diverter valve cartridge design isolates the two strainer basket chambers and prevents fluid bypass. An easy-to-turn handle operates the cartridge and diverts the system flow from one chamber to the other - the flow in the pipeline is never shut off.When a strainer basket needs to be cleaned, the lever handle is turned to take it out of service and to divert the flow through the other chamber. The position of the handle clearly indicates at all times which chamber is in service.No special tools are needed to access the strainer basket for cleaning. The chamber is first drained and then the cover is lifted and swung clear of the chamber opening. The dynamic diverter cartridge seals prevent fluid bypass into the out-of-service chamber- making for easy, hassle-free strainer basket servicing.A minimum of parts, easily replaced, makes service a snap. Exploded view shows simplicity of design.Should the diverter valve require service, it slides right out the top of the strainer body.Standard body vent on top of strainer makes venting quick and easy.
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Please contact Sure Flow Equipment Inc. for certifications.
Specifications American Society Of Mechanical Engineers Asme Cl1
200 psig
Specifications Body And Cartridge Material
Bronze (BZ)
Specifications Connection Type
Flanged (F)
Specifications Diverted Ball Material
Stainless Steel
Specifications Prefix Size
0150
Specifications Screen Opening
156 in
Specifications Seat Material
Polytetrafluoroethylene (PTFE)/Buna N
Specifications Size
1 1/2 in
