Sure Flow 1.5in Carbon Steel Threaded Duplex Strainer
Sure Flow 1.5in Carbon Steel Threaded Duplex Strainer
SKU:DUP-c593e2
Efficiently remove dirt from pipelines with the Sure Flow 1.5in Carbon Steel Threaded Duplex Strainer. Easy-to-service design without system shutdown.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Sure Flow 1.5in Carbon Steel Threaded Duplex Strainer
$349.99
Quantity: 1
Claim Your Seller Account
Sure Flow 1.5in Carbon Steel Threaded Duplex Strainer
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

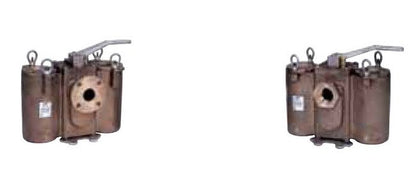

The Sure Flow 1.5-inch Carbon Steel Threaded Duplex Strainer is designed to efficiently remove dirt and debris from pipelines, safeguarding critical system components. With a unique flow diverter valve cartridge, this strainer enables easy servicing without system shutdown. The cartridge design isolates strainer basket chambers, preventing fluid bypass, while the handle diverts flow seamlessly between chambers. Featuring ASME CL.150 rating and constructed with top-quality materials, this duplex strainer ensures hassle-free maintenance and reliable performance.
Product Specifications
Additional Information Additional Information

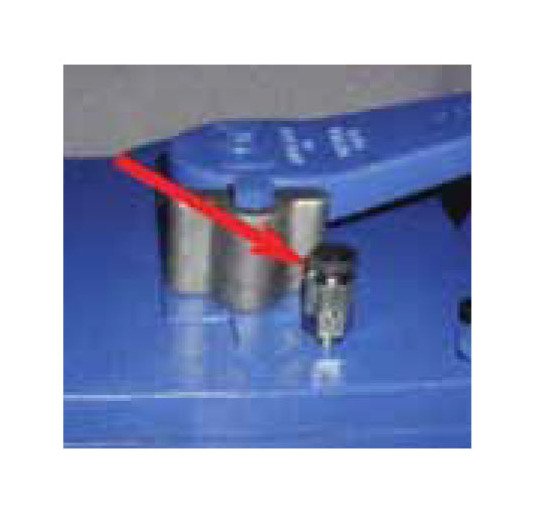

A unique flow diverter valve cartridge design isolates the two strainer basket chambers and prevents fluid bypass. An easy-to-turn handle operates the cartridge and diverts the system flow from one chamber to the other - the flow in the pipeline is never shut off.When a strainer basket needs to be cleaned, the lever handle is turned to take it out of service and to divert the flow through the other chamber. The position of the handle clearly indicates at all times which chamber is in service.No special tools are needed to access the strainer basket for cleaning. The chamber is first drained and then the cover is lifted and swung clear of the chamber opening. The dynamic diverter cartridge seals prevent fluid bypass into the out-of-service chamber- making for easy, hassle-free strainer basket servicing.A minimum of parts, easily replaced, makes service a snap. Exploded view shows simplicity of design.Should the diverter valve require service, it slides right out the top of the strainer body.Standard body vent on top of strainer makes venting quick and easy.
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Please contact Sure Flow Equipment Inc. for certifications.
Specifications American Society Of Mechanical Engineers Asme Cl1
200 psig
Specifications Body And Cartridge Material
Carbon Steel (CS)
Specifications Connection Type
Threaded (T)
Specifications Diverted Ball Material
Stainless Steel
Specifications Prefix Size
0150
Specifications Screen Opening
156 in
Specifications Seat Material
Polytetrafluoroethylene (PTFE)/Buna N
Specifications Size
1 1/2 in
