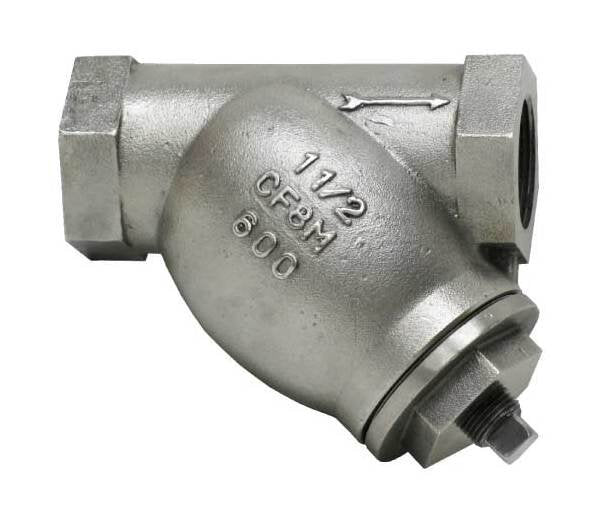

Sure Flow 1.5in Cast 316 Stainless Steel NPT/SW Y Strainer

Name: Sure Flow 1.5in Cast 316 Stainless Steel NPT/SW Y Strainer
Brand: Sure Flow Equipment, Inc.
SKU: YST-4191cc
Price: 189.99 USD
Availability: OutOfStock

SKU:YST-4191cc

Sure Flow 1.5in Stainless Steel Y Strainer - High-pressure solution for water, oil, gas. Precision-machined seat, ASTM A351 Grade CF8M construction, ISO 9001:2008 certified.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow YT6SS 1 1/2 Inch Y Strainer is a versatile solution designed for high-pressure applications up to 1480 psi for water, oil, or gas. Constructed from ASTM A351 Grade CF8M Cast Stainless Steel, this strainer features a precision-machined seat for a secure fit with its removable stainless steel screen. With a blow-off NPT of 1/2 inch and exceptional durability, it ensures efficient filtration and easy maintenance. Meeting ISO 9001:2008 standards, it offers reliability and performance for a wide range of industrial settings.

Product Specifications

Construction Body Material

American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel

Construction Cover Material

American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel

Construction Plug Material

American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel

Construction Screen Material

Stainless Steel

Dimensions Blow Off National Pipe Thread Npt Size

1/2 in

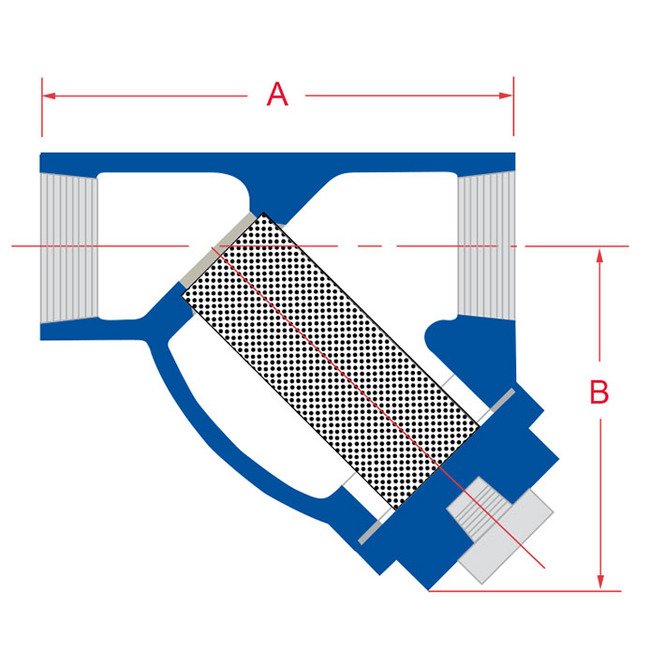

Dimensions Dimension A

6 1/4 in

Dimensions Dimension B

4 3/4 in

Dimensions Prefix Size

0150

Dimensions Shipping Weight

10 lb

Dimensions Size

1 1/2 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Must specify if for steam serviceFor Socket Weld add suffix "SW" to model numberManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

1440 psi

Operating Pressures And Temperatures Pressure At 486 Degree Fahr

600 psi

Specifications Connection Type

Threaded

Specifications Orientation

Horizontal | Vertical

Standard Screens Perforated Standard Screen

1/32 in

Standard Screens Screen Opening

0.032 in

Sure Flow 1.5in Cast 316 Stainless Steel NPT/SW Y Strainer
