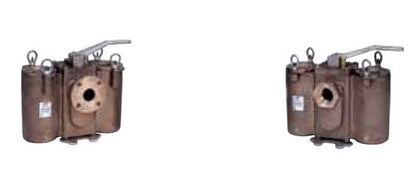

Sure Flow 1 Inch Cast Iron Flanged Duplex Strainer
Sure Flow 1 Inch Cast Iron Flanged Duplex Strainer
SKU:DUP-2fbc42
Protect your system with the Sure Flow 1 Inch Cast Iron Flanged Duplex Strainer, efficient debris removal with hassle-free maintenance.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Sure Flow 1 Inch Cast Iron Flanged Duplex Strainer
$349.99
Quantity: 1
Claim Your Seller Account
Sure Flow 1 Inch Cast Iron Flanged Duplex Strainer
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 1 Inch Cast Iron Flanged Duplex Strainer efficiently removes dirt and debris, safeguarding your pipeline and system components. Designed for hassle-free maintenance, it prevents overflow during servicing, saving you time and effort. Featuring a flow diverter valve cartridge design, it prevents fluid bypass and ensures continuous flow. With an easy-to-turn handle and a clear chamber indicator, operation is intuitive and straightforward. Cleaning the strainer basket is a breeze, thanks to the dynamic diverter cartridge seals and easy access design. This sturdy strainer meets ASME CL.125 standards, providing reliable performance and peace of mind.
Product Specifications
Additional Information Additional Information
A unique flow diverter valve cartridge design isolates the two strainer basket chambers and prevents fluid bypass. An easy-to-turn handle operates the cartridge and diverts the system flow from one chamber to the other - the flow in the pipeline is never shut off.When a strainer basket needs to be cleaned, the lever handle is turned to take it out of service and to divert the flow through the other chamber. The position of the handle clearly indicates at all times which chamber is in service.No special tools are needed to access the strainer basket for cleaning. The chamber is first drained and then the cover is lifted and swung clear of the chamber opening. The dynamic diverter cartridge seals prevent fluid bypass into the out-of-service chamber- making for easy, hassle-free strainer basket servicing.A minimum of parts, easily replaced, makes service a snap. Exploded view shows simplicity of design.Should the diverter valve require service, it slides right out the top of the strainer body.Standard body vent on top of strainer makes venting quick and easy.
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Please contact Sure Flow Equipment Inc. for certifications.
Specifications American Society Of Mechanical Engineers Asme Cl1
200 psig
Specifications Body And Cartridge Material
Cast Iron (CI)
Specifications Connection Type
Flanged (F)
Specifications Diverted Ball Material
Stainless Steel
Specifications Prefix Size
0100
Specifications Screen Opening
156 in
Specifications Seat Material
Polytetrafluoroethylene (PTFE)/Buna N
Specifications Size
1 in
