Sure Flow 1 Inch Cast Iron NPT Simplex Basket Strainer
Sure Flow 1 Inch Cast Iron NPT Simplex Basket Strainer
SKU:BAS-bef1e7
Efficiently remove solid particulates with the Sure Flow 1 Inch Cast Iron NPT Basket Strainer. Easy maintenance, high durability, ASTM compliant.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Sure Flow 1 Inch Cast Iron NPT Simplex Basket Strainer
$189.99
Quantity: 1
Claim Your Seller Account
Sure Flow 1 Inch Cast Iron NPT Simplex Basket Strainer
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

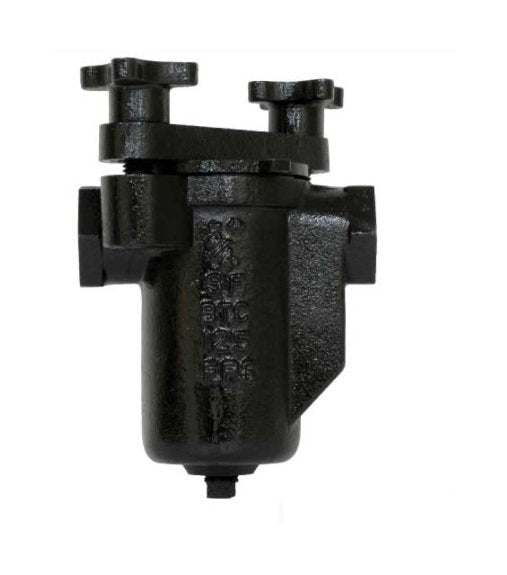

The Sure Flow BTC125 1 Inch Cast Iron NPT Simplex Basket Strainer is designed for applications with heavy solid particulate loads, ensuring efficient removal and disposal of captured debris. Featuring a Swivel Clamp Cover with BUNA-N O-ring seals, it allows tool-free screen removal for quick maintenance. This strainer meets ASTM standards, operates at 200 psi, and includes a stainless steel screen for durability and reliability.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
American Society for Testing and Materials (ASTM) A126 Class B Buna-N O-Ring
Construction Screen Material
Stainless Steel

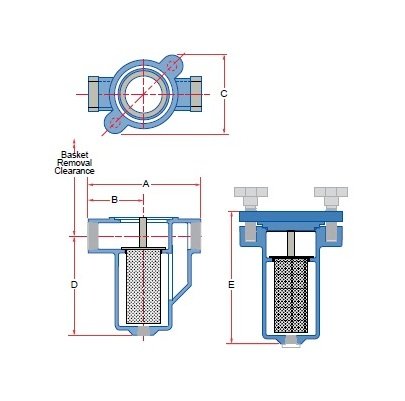

Dimensions Basket Removal Clearance
6 1/2 in
Dimensions Dimension A
6 7/8 in
Dimensions Dimension B
3 5/16 in
Dimensions Dimension C
5 7/16 in
Dimensions Dimension D
5 1/4 in
Dimensions Dimension E
7 5/8 in
Dimensions Drain Size
1/2 in
Dimensions Prefix Size
0100
Dimensions Shipping Weight
18 lb
Dimensions Size
1 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
