Sure Flow 1 Inch Stainless Steel Duplex Strainer with Flanged Connection
Sure Flow 1 Inch Stainless Steel Duplex Strainer with Flanged Connection
SKU:DUP-27ba97
Protect pipelines effectively with the Sure Flow 1 Inch Stainless Steel Duplex Strainer; ensures uninterrupted system flow and easy maintenance.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Sure Flow 1 Inch Stainless Steel Duplex Strainer with Flanged Connection
$249.99
Quantity: 1
Claim Your Seller Account
Sure Flow 1 Inch Stainless Steel Duplex Strainer with Flanged Connection
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 1 Inch Stainless Steel Duplex Strainer with Flanged Connection is a robust solution for removing dirt and debris from pipelines while safeguarding sensitive system components. Its innovative design facilitates easy strainer basket servicing with no risk of leakage or overflow. This duplex strainer features a unique flow diverter valve cartridge that prevents fluid bypass, ensuring uninterrupted system flow. With an intuitive lever handle for chamber diversion and hassle-free maintenance, this strainer promotes operational efficiency and reliability. Sure Flow prioritizes quality and compliance, meeting International Organization for Standardization (ISO) 9001:2008 standards.
Product Specifications
Additional Information Additional Information

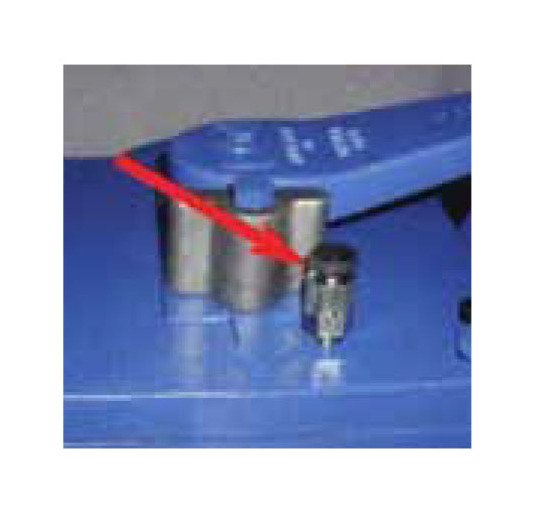

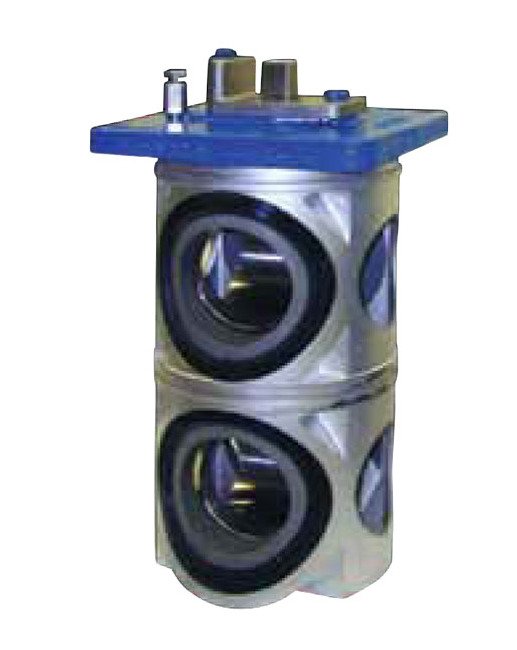

A unique flow diverter valve cartridge design isolates the two strainer basket chambers and prevents fluid bypass. An easy-to-turn handle operates the cartridge and diverts the system flow from one chamber to the other - the flow in the pipeline is never shut off.When a strainer basket needs to be cleaned, the lever handle is turned to take it out of service and to divert the flow through the other chamber. The position of the handle clearly indicates at all times which chamber is in service.No special tools are needed to access the strainer basket for cleaning. The chamber is first drained and then the cover is lifted and swung clear of the chamber opening. The dynamic diverter cartridge seals prevent fluid bypass into the out-of-service chamber- making for easy, hassle-free strainer basket servicing.A minimum of parts, easily replaced, makes service a snap. Exploded view shows simplicity of design.Should the diverter valve require service, it slides right out the top of the strainer body.Standard body vent on top of strainer makes venting quick and easy.
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Please contact Sure Flow Equipment Inc. for certifications.
Specifications American Society Of Mechanical Engineers Asme Cl1
200 psig
Specifications Body And Cartridge Material
Stainless Steel (SS)
Specifications Connection Type
Flanged (F)
Specifications Diverted Ball Material
Stainless Steel
Specifications Prefix Size
0100
Specifications Screen Opening
156 in
Specifications Seat Material
Polytetrafluoroethylene (PTFE)/Buna N
Specifications Size
1 in
