Sure Flow 1 Inch Stainless Steel Threaded Duplex Strainer

Name: Sure Flow 1 Inch Stainless Steel Threaded Duplex Strainer
Brand: Sure Flow Equipment, Inc.
SKU: DUP-d2bd0b
Price: 99.99 USD
Availability: OutOfStock

SKU:DUP-d2bd0b

Protect pipelines effectively with the Sure Flow 1 Inch Stainless Steel Threaded Duplex Strainer, designed for efficient maintenance and ASME CL.150 certification.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Ensure clean pipelines with the Sure Flow 1 Inch Stainless Steel Threaded Duplex Strainer. Featuring a convenient design for easy servicing, this duplex strainer prevents leakage and overflow during maintenance. The flow diverter valve cartridge design enhances efficiency by isolating strainer basket chambers to prevent fluid bypass. With ASME CL.150 certification and ISO 9001:2008 compliance, this strainer guarantees optimal performance while meeting industry standards.

Product Specifications

Additional Information Additional Information

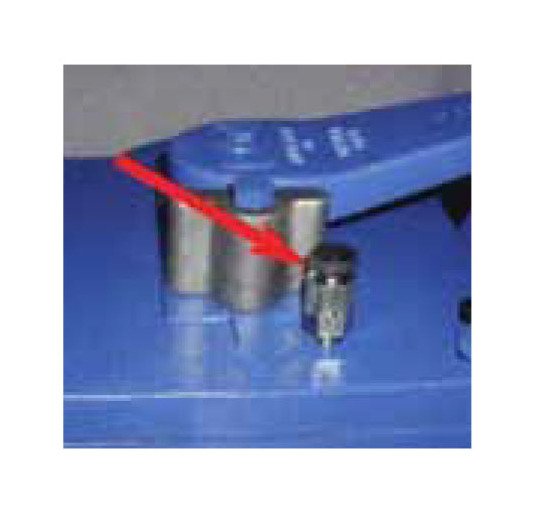

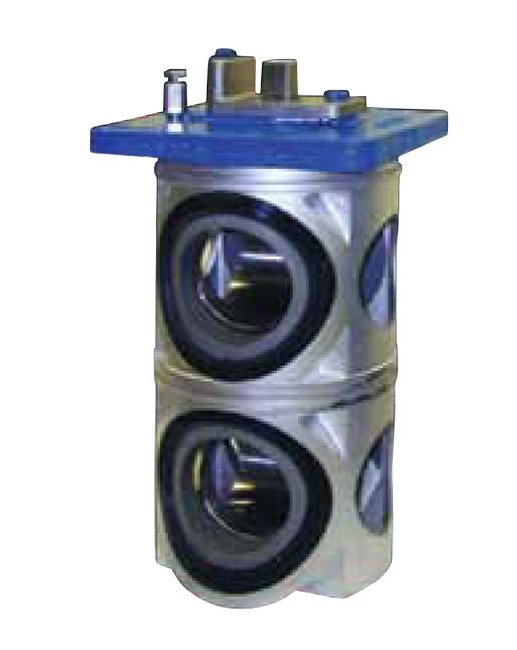

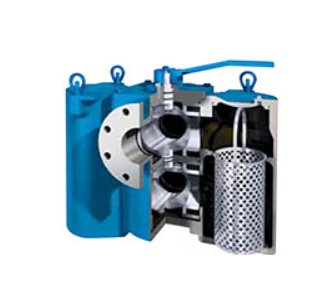

A unique flow diverter valve cartridge design isolates the two strainer basket chambers and prevents fluid bypass. An easy-to-turn handle operates the cartridge and diverts the system flow from one chamber to the other - the flow in the pipeline is never shut off.When a strainer basket needs to be cleaned, the lever handle is turned to take it out of service and to divert the flow through the other chamber. The position of the handle clearly indicates at all times which chamber is in service.No special tools are needed to access the strainer basket for cleaning. The chamber is first drained and then the cover is lifted and swung clear of the chamber opening. The dynamic diverter cartridge seals prevent fluid bypass into the out-of-service chamber- making for easy, hassle-free strainer basket servicing.A minimum of parts, easily replaced, makes service a snap. Exploded view shows simplicity of design.Should the diverter valve require service, it slides right out the top of the strainer body.Standard body vent on top of strainer makes venting quick and easy.

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Manufacturer reserves the right to modify dimensions, materials, or design. Please contact Sure Flow Equipment Inc. for certifications.

Specifications American Society Of Mechanical Engineers Asme Cl1

200 psig

Specifications Body And Cartridge Material

Stainless Steel (SS)

Specifications Connection Type

Threaded (T)

Specifications Diverted Ball Material

Stainless Steel

Specifications Prefix Size

0100

Specifications Screen Opening

156 in

Specifications Seat Material

Polytetrafluoroethylene (PTFE)/Buna N

Specifications Size

1 in
